Overview

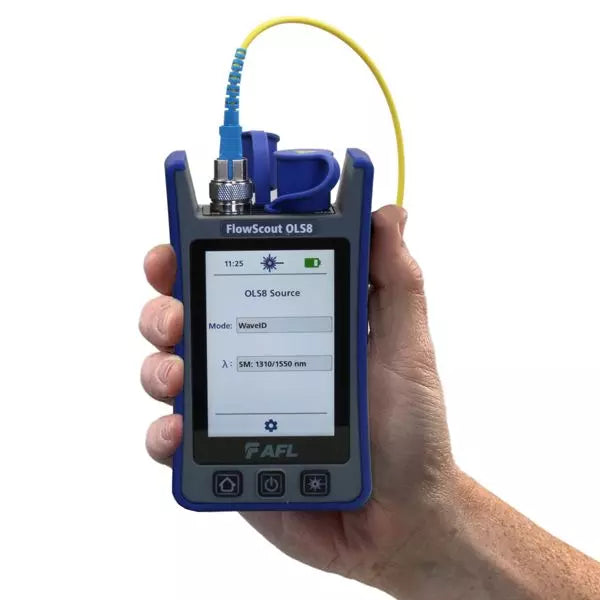

The AFL OLS8-SL2-BAS FlowScout® Basic Kit is a comprehensive optical light source solution designed for field testing in enterprise LAN, data center, PON, and broadband network environments. The OLS8-SM dual laser light source features a single output port capable of delivering stable 1310nm and 1550nm wavelengths for accurate insertion loss measurements.
Built for efficiency and ease of use, the unit integrates a color touchscreen with an intuitive, icon-driven interface. When paired with compatible optical power meters, the device utilizes Wave ID mode to automatically synchronize up to three wavelengths, significantly reducing total test time. The system also supports continuous wave (CW) mode and various test tone frequencies for fiber identification, with a battery life supporting 10 hours of continuous operation.
Key Features
-

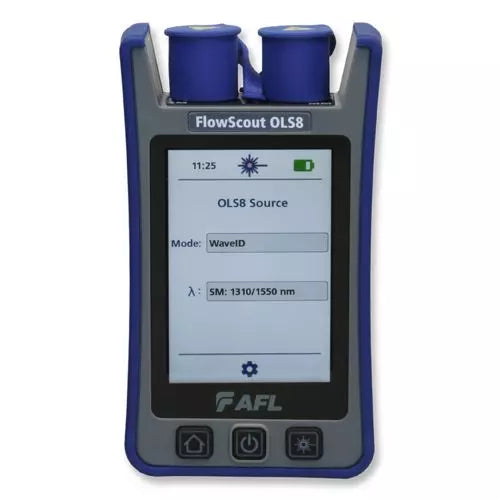

Integrated Touchscreen
Features a high-visibility color display with icon-driven menus for rapid navigation and configuration. -
Wave ID Support
Automatically detects and sets the wavelength when used with an compatible power meter to streamline testing. -
Dual Wavelength Output
Provides both 1310nm and 1550nm wavelengths to support common single-mode testing requirements. -
Flexible Tone Generation
Supports 270Hz, 330Hz, 1kHz, and 2kHz tones for reliable fiber identification. -
Extended Battery Life
Operates for up to 10 hours of continuous testing on a single charge. -
Compact and Rugged
Includes a protective rubber boot and soft carry case for safe transport and field protection.
Applications
- Enterprise LAN networks
- Data center fiber infrastructure
- PON (Passive Optical Network) testing
- Broadband network installation and maintenance
Package Contents
- OLS8-SM Dual Optical Light Source
- Protective rubber boot
- SC/UPC adapter
- AC charger and power cable
- Quick reference guide
- Soft carry case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | OLS8-SL2-BAS |
| Emitter Type | Laser |
| Wavelengths | 1310nm, 1550nm |
| Operating Modes | Wave ID, CW, Tone (270Hz, 330Hz, 1kHz, 2kHz) |
| Battery Runtime | 10 hours (continuous) |
| Warranty | 5-Year |
Frequently Asked Questions
What wavelengths does this light source support?
The OLS8-SM Dual unit supports 1310nm and 1550nm wavelengths for single-mode fiber testing.
Can I use this with any power meter?
While it functions as a standalone light source, Wave ID automated synchronization requires pairing with a compatible AFL OPM8 series power meter.
Are test jumpers included in the kit?
No, test jumpers and additional connector adapters must be purchased separately.
Does the unit support CW mode?
Yes, the unit supports CW (continuous wave) mode for output without encoding.
What is the typical battery life?
The OLS8 provides approximately 10 hours of continuous operation.
