Overview

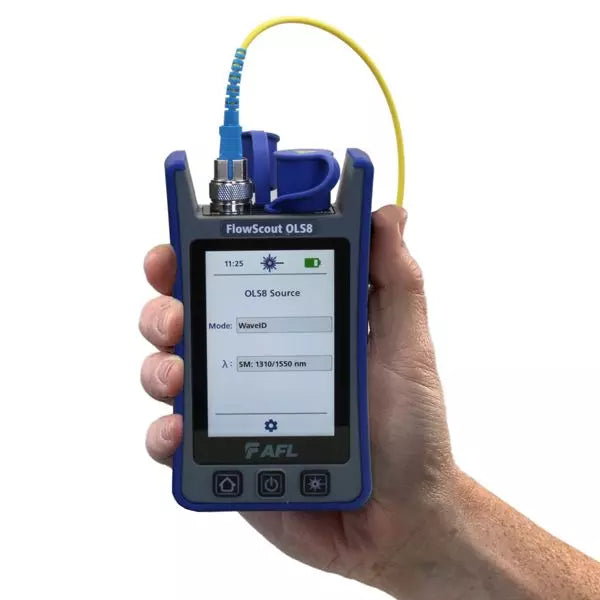

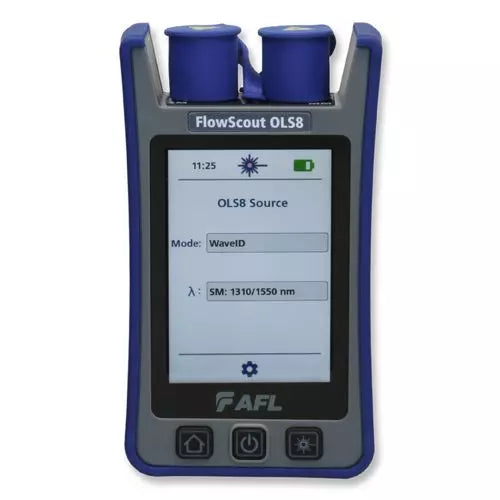

The AFL OLS8-SL7-BAS FlowScout® OLS8-SM XGS is a smart optical light source engineered for testing enterprise LAN, data centers, PON, and broadband networks. This unit features a single output port capable of delivering precise 1310nm, 1490nm, and 1550nm wavelengths for accurate fiber network validation.
Equipped with an intuitive color touchscreen, the OLS8 simplifies operations through its icon-driven interface. When combined with a compatible OPM8 power meter, the device utilizes Wave ID mode to automatically synchronize wavelengths across devices, significantly reducing test setup and completion time. The unit is designed for field durability and provides up to 10 hours of continuous operation on a single charge.
Key Features
-
Wavelength Support
Supports testing at 1310nm, 1490nm, and 1550nm for versatile network compatibility. -
Color Touchscreen Interface
Features an intuitive, icon-driven display for rapid navigation and configuration. -
Wave ID Functionality
Automatically synchronizes with compatible power meters to reduce testing time and eliminate errors. -
Multiple Test Modes
Offers CW (continuous) and Wave ID modes, plus support for 270Hz, 330Hz, 1kHz, and 2kHz tone generation. -
Extended Battery Life
Provides up to 10 hours of continuous field operation for reliable, all-day testing. -
Integrated Protection
Includes a ruggedized rubber boot for improved impact resistance in harsh environments.
Applications
- Enterprise LAN networks
- Data center fiber infrastructure
- Passive Optical Networks (PON)
- Broadband network installation and maintenance
Package Contents
- OLS8-SM XGS Optical Light Source
- Protective Rubber Boot
- SC/UPC Adapter
- AC Charger and Power Cable
- Quick Reference Guide
- Soft Carry Case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | OLS8-SL7-BAS |
| Part Number | 812X754 |
| Operating Wavelengths | 1310nm, 1490nm, 1550nm |
| Tone Generation | 270Hz, 330Hz, 1kHz, 2kHz |
| Output Modes | CW, Wave ID |
| Battery Life | 10 hours (continuous) |
Frequently Asked Questions
What is the primary benefit of the Wave ID mode?
Wave ID mode automatically synchronizes the light source with a compatible power meter, allowing the meter to identify the wavelength being tested without manual switching, which decreases overall test time.
Does this kit include everything needed to start testing?
The kit includes the light source and essential accessories like the charger and carry case. However, test jumpers and specific connector adapters must be purchased separately.
What kind of fiber optic systems does this support?
It is designed for single-mode applications in LAN, data center, PON, and broadband network environments.
Can this device generate tones for fiber identification?
Yes, it supports tone generation at 270Hz, 330Hz, 1kHz, and 2kHz for easy fiber tracing and identification.
What is the warranty period for this unit?
This product includes a 5-year warranty.
