Overview

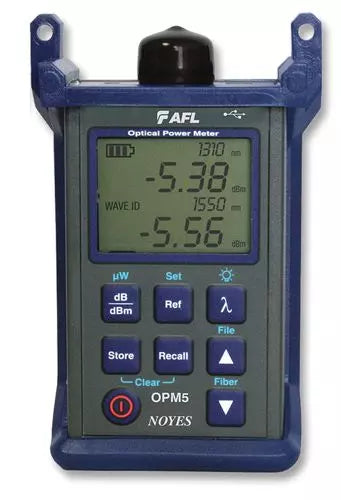

The AFL OPM5-34-0900PR is a high-performance optical power meter designed for field technicians and network engineers. It is engineered for precise measurement of optical power and loss in fiber optic networks, facilitating essential network testing and certification tasks.
Download Product Spec Sheet
This unit features Wave ID technology, allowing for automatic wavelength identification and switching when paired with a compatible optical light source. It also supports multiple test tone detection (270 Hz, 330 Hz, 1 kHz, and 2 kHz) for effective fiber identification. The device is built for rugged field use and includes a protective rubber boot, making it suitable for various operating environments.
The OPM5-34-0900PR is equipped with a large, backlit, dual-wavelength LCD display and offers data storage capabilities for up to 500 test records per calibrated wavelength, streamlining documentation and reporting processes.
Key Features
-
Wave ID Technology
Enables automatic wavelength identification and switching to reduce testing time and eliminate setup errors. -
Test Tone Detection
Performs 270 Hz, 330 Hz, 1 kHz, and 2 kHz tone detection for accurate fiber identification in active networks. -
Data Storage
Stores up to 500 test records for each calibrated wavelength to simplify data management and export. -
Dual-Wavelength Display
Features a large, backlit LCD that allows for simultaneous viewing of measurement data. -
Universal Adapter Interface
Includes a 2.5mm universal adapter cap, ensuring compatibility with common SC, FC, and ST connector types. -
Rugged Design
Supplied with a protective rubber boot and a dedicated carry case for enhanced durability during transport and field operations.
Applications
- Fiber network installation and commissioning
- Fiber optic cable plant maintenance
- Network troubleshooting
- Optical power measurement and loss verification
Package Contents
- OPM5-34-0900PR Optical Power Meter
- 2 x AA Batteries
- Protective Rubber Boot
- Universal 2.5mm Adapter Cap
- USB Cable
- Software
- User Guide
- Carry Case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | OPM5-34-0900PR |
| Part Number | 812X712 |
| Supported Test Tones | 270 Hz, 330 Hz, 1 kHz, 2 kHz |
| Data Storage | 500 records per wavelength |
| Connector Compatibility | SC, FC, ST (via included 2.5mm adapter) |
| Power Supply | 2 x AA Batteries |
| Warranty | 5-Year |
Frequently Asked Questions
What types of fiber connectors are compatible with this meter?
The included 2.5mm universal adapter cap is compatible with SC, FC, and ST connectors.
Can this device store test results?
Yes, the unit features data storage for up to 500 test records for each calibrated wavelength.
Does it support automatic wavelength switching?
Yes, it features Wave ID technology for automatic wavelength identification and switching when used with a compatible light source.
What is the warranty period?
This product comes with a 5-year manufacturer warranty.
What power source does it use?
It is powered by 2 AA batteries, which are included in the package.
