Overview

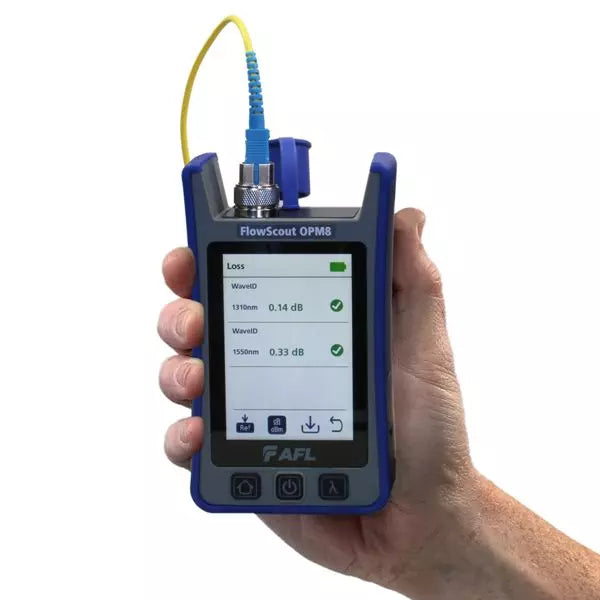

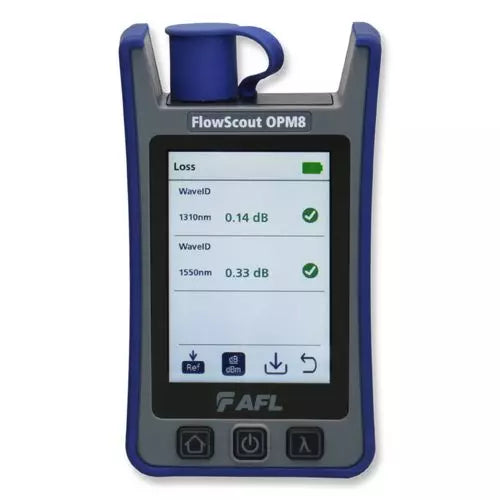

The AFL OPM8-SP3-BAS FlowScout® OPM8-L is a smart optical power meter designed for rapid loss testing and pass/fail analysis in various network environments, including enterprise LAN, data centers, PON, and broadband networks. This basic kit is optimized for low power measurement applications.
Equipped with an InGaAs detector and a 3.5" color touchscreen, the device offers an intuitive interface for efficient operation. Its proprietary Wave ID technology allows the meter to automatically synchronize with compatible Wave ID light sources to identify and measure wavelengths without manual configuration. The unit also supports automated detection of 270Hz, 330Hz, 1kHz, and 2kHz fiber identification tones.
Key Features
-
3.5" Color Touchscreen
Provides an intuitive and responsive interface for easy navigation and data viewing. -
Wave ID Functionality
Automatically synchronizes with compatible light sources to detect and measure wavelengths without manual switching. -
Pass/Fail Analysis
Enables rapid network certification by providing immediate pass or fail status during testing. -
Tone Detection
Supports detection of 270Hz, 330Hz, 1kHz, and 2kHz tones for efficient fiber identification. -
Broad Operating Range
Optimized for low power measurements from +10 to -70dBm. -
Integrated Software
Includes Basic software and a 60-day trial of Advanced software for professional reporting and data management.
Applications
- Enterprise LAN networks
- Data center fiber infrastructure
- PON (Passive Optical Networks)
- Broadband network installation and maintenance
Package Contents
- OPM8-L Optical Power Meter
- Protective rubber boot
- 2.5 mm universal adapter
- AC charger and power cable
- User guide
- FlexReports Basic software (with 60-day Advanced trial)
- Soft carry case
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | OPM8-SP3-BAS |
| Detector Type | InGaAs |
| Power Range | +10 to -70dBm |
| Tone Detection Range | +10 to -50dBm (+10 to -45dBm at 850nm) |
| Display | 3.5" Color Touchscreen |
| Warranty | 5-Year |
Frequently Asked Questions
What is the primary measurement range for this meter?
The OPM8-L is designed for low power measurements ranging from +10dBm down to -70dBm.
Does this kit include a light source?
No, this is a power meter kit; light sources and test jumpers are purchased separately.
Can the meter identify fiber tones?
Yes, it supports automatic detection of 270Hz, 330Hz, 1kHz, and 2kHz identifying tones.
What software is included?
The kit includes FlexReports Basic software and a 60-day trial of the Advanced software version.
Is this unit TAA compliant?
No, this specific part number is non-TAA compliant.
