Overview

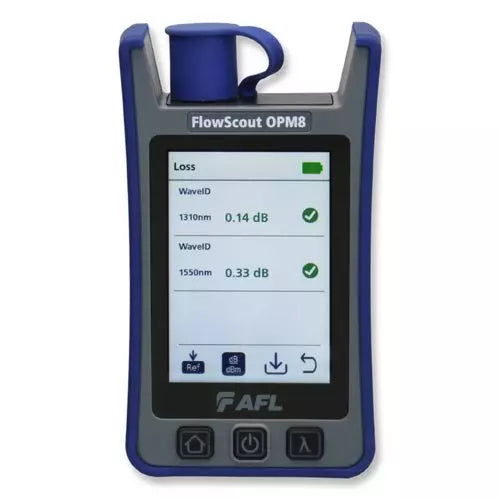

The AFL OPM8-SP3-PLUS FlowScout® is a high-performance optical power meter designed for efficient loss testing and pass/fail analysis in diverse network environments, including enterprise LANs, data centers, PONs, and broadband systems. This advanced kit features a highly sensitive InGaAs detector with a measurement range of +10 to -70dBm, enabling precise signal characterization across a broad set of applications.

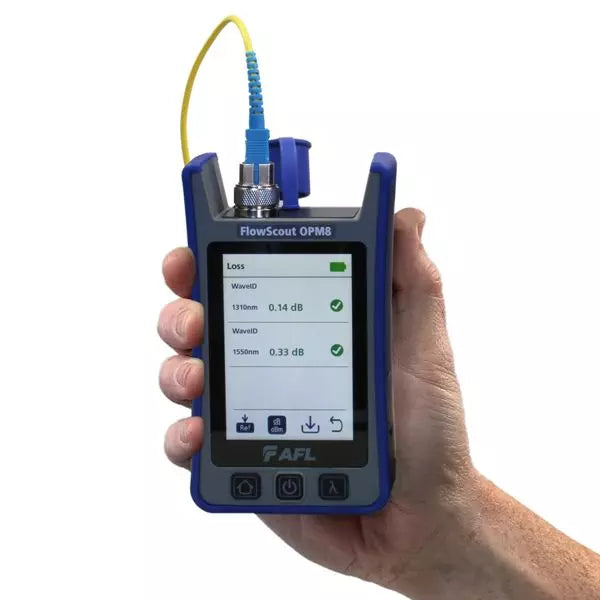

Built for field use, the OPM8 features a 3.5-inch color touchscreen with an intuitive interface that streamlines workflows. Its proprietary Wave ID functionality enables automatic synchronization with compatible light sources, significantly reducing testing time and human error. Additionally, the device supports automatic tone detection for 270Hz, 330Hz, 1kHz, and 2kHz frequencies, facilitating rapid fiber identification and troubleshooting.
Key Features
-
InGaAs Detector
Features high sensitivity for precise low-power measurements from +10 to -70dBm. -
Wave ID Functionality
Automatically synchronizes with compatible light sources to identify and measure wavelengths without manual adjustment. -
Tone Detection
Automatically detects and reports 270Hz, 330Hz, 1kHz, and 2kHz tones for efficient fiber identification. -
Color Touchscreen
Utilizes a 3.5-inch intuitive display for easy navigation and clear pass/fail results. -
Pass/Fail Analysis
Simplifies network certification by providing immediate visual status based on pre-set thresholds. -
Rugged Construction
Includes a protective rubber boot for increased durability in challenging field environments.
Applications
- Enterprise LAN networks
- Data center fiber testing
- PON (Passive Optical Network) installation
- Broadband network maintenance
Package Contents
- OPM8-L Optical Power Meter
- Protective Rubber Boot
- 2.5 mm Universal Adapter
- AC Charger and Power Cable
- FlexReports Advanced Software
- Soft Carry Case
- User Guide
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | OPM8-SP3-PLUS |
| Part Number | 812X750 |
| Detector Type | InGaAs |
| Power Range | +10 to -70dBm |
| Warranty | 5-Year |
Frequently Asked Questions
What is the primary difference between basic and advanced kits?
Advanced kits typically include upgraded software capabilities such as FlexReports Advanced for detailed data management and reporting.
Does this kit include test jumpers?
No, test jumpers and specific connector adapters are required for operation and must be purchased separately.
Can the OPM8 detect tones?
Yes, it automatically detects and reports 270Hz, 330Hz, 1kHz, and 2kHz tones used for fiber identification.
What is Wave ID?
Wave ID is a proprietary functionality that allows the power meter to automatically synchronize wavelengths with a compatible light source, saving time during testing.
Is this unit TAA compliant?
No, this specific model is listed as non-TAA compliant.
