Overview

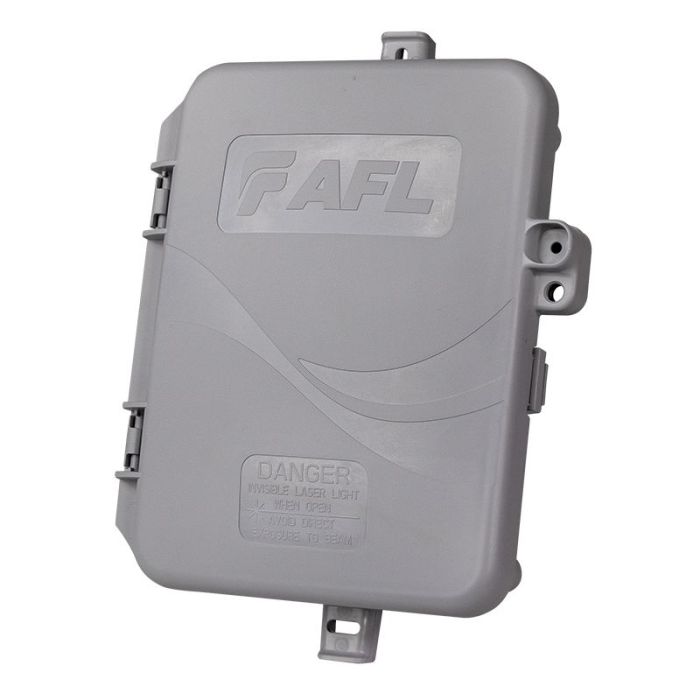

The AFL OptiNID Duo is a compact network interface device (NID) designed for secure fiber distribution in outside plant (OSP) environments. This unit serves as a robust demarcation point, facilitating the transition between external drop cables and internal fiber networks.
Constructed for durability and ease of installation, the OptiNID Duo accommodates various termination styles including quick-termination and splice-on connectors such as FUSECONNECT. It supports multiple entry configurations, providing versatility for diverse installation requirements in residential or light commercial network setups.
Key Features
-
U-Grommet Cable Entry
Features two dedicated U-shaped drop-in grommets for efficient, weather-resistant cable installation. -
Adapter Capacity
Supports up to 4 SC simplex or LC duplex adapters to provide flexible connectivity options. -
Integrated Splice Management
Includes built-in splice sleeve holders capable of managing 18 single fiber or 6 ribbon fiber splices. -
Secure Access
Equipped with a locking mechanism to prevent unauthorized access to the network interface. -
Grounding Included
Internal grounding components are pre-installed to ensure network safety and compliance. -
Compact Form Factor
Engineered with a low-profile 9.6"H x 7"W x 2.7"D housing for discrete wall-mount applications.
Applications
- Fiber-to-the-Home (FTTH) installations
- Network demarcation points
- Outdoor fiber distribution
- Multi-dwelling unit (MDU) fiber drops
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Part Number | OAA1X0XPXXUU |
| Dimensions | 9.6"H x 7"W x 2.7"D |
| Max Adapter Capacity | 4 SC Simplex or LC Duplex |
| Splice Capacity | 18 Single Fiber / 6 Ribbon Fiber |
| Cable Entry | (2) U-shaped drop-in grommets |
Frequently Asked Questions
Are adapters included with the unit?
No, adapters must be purchased separately.
What type of connectors can be used?
The unit is designed for quick termination and splice-on connectors, including the AFL FUSECONNECT line.
Does this include a lock?
Yes, the unit features a locking mechanism for security.
Can I manage ribbon fiber splices in this unit?
Yes, it supports up to 6 ribbon fiber splices.
What are the physical dimensions?
The NID measures 9.6 inches in height, 7 inches in width, and 2.7 inches in depth.
