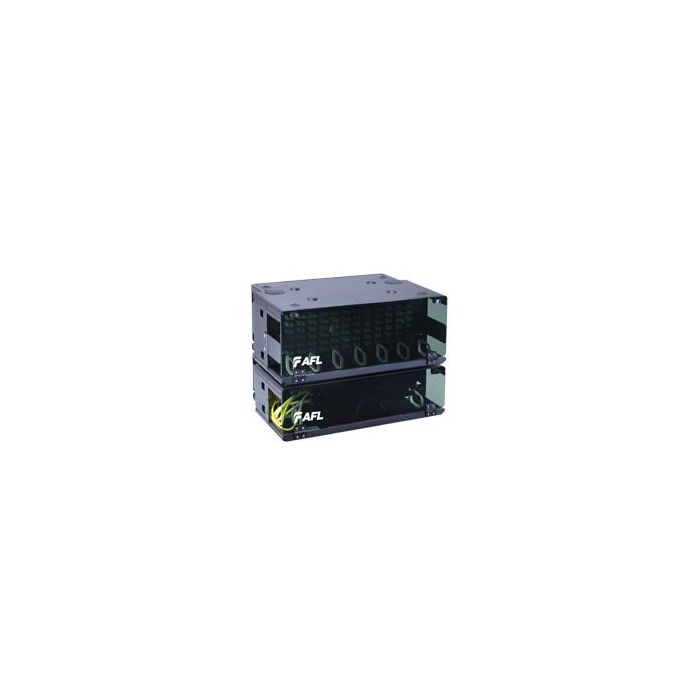

AFL Patch and Splice Bay, 7RU, Holds (12) LGX 170 Panels, Unloaded-Black

Overview

The AFL 7RU Fiber Patch and Splice Panel provides a high-density, integrated solution for rack-mounted fiber management. Designed for environments requiring both termination and splicing, this unit facilitates up to 144 fiber ports within a compact 7 rack unit (RU) footprint.

The assembly is divided into two distinct sections: a 4RU termination patch panel and a 3RU optical splice shelf. The patch panel features a master plate compatible with up to 12 LGX 118 adapter panels, while the splice shelf is equipped with three telescoping STF-48 splice drawers. This configuration allows for organized cable routing, efficient termination, and secure splice management in data centers and telecommunications facilities.

Key Features

• High-Density Design
  Supports up to 144 fiber ports within 7RU of rack space, maximizing cabinet density.
• Integrated Splice Management
  Includes three telescoping STF-48 splice drawers for organized, easy-access fusion splicing.
• Flexible Connectivity
  Accommodates up to 12 LGX 118 adapter panels for modular network configuration.
• Fiber Protection
  Offers storage capacity of one meter per spliced fiber (3mm jacket) to ensure fiber integrity.
• Sturdy Construction
  Designed for standard rack mount installation with a professional black finish.

Applications

• Data Center Interconnects
• Central Office Termination
• Enterprise Fiber Networks
• Rack-Mount Fiber Distribution

Technical Specifications

Downloads

• Product PDF
