Overview

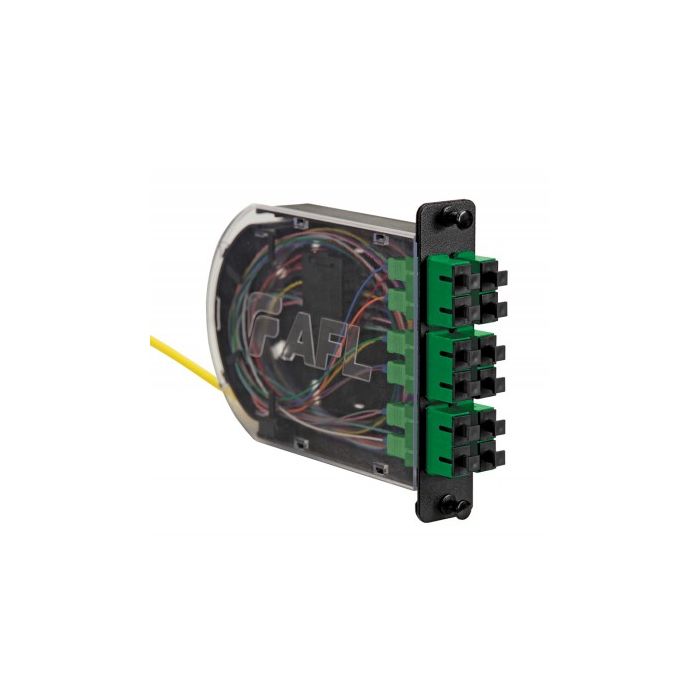

The AFL Polimod adapter plate and pigtail assembly is a modular solution designed to streamline fiber optic patching and splicing. This assembly features 12 SC/APC connector ports, providing a high-density, factory-terminated interface for efficient network connectivity in fiber enclosures.
Engineered for use in data centers and enterprise networks, this unit utilizes Bend Insensitive Fiber (BIF) to maintain signal integrity in compact routing environments. The integrated 900μm pigtails simplify the installation process, allowing for direct fusion splicing within standard rack or wall-mount enclosures.
Key Features
-
12-Port Capacity
Features 12 SC/APC adapter ports for organized, high-density fiber management. -
Bend Insensitive Fiber (BIF)
Utilizes BIF technology to minimize signal loss in tight bending radii installations. -
Factory-Terminated Pigtails
Includes 900μm pigtails, reducing field termination time and labor costs. -
SC/APC Connectivity
Standardized SC/APC interface ensures compatibility with widely used optical network equipment. -
Modular Design
Compatible with Polimod-ready enclosure systems for rapid deployment and upgrades. -
Protection
Supplied in a protective box for secure transport and storage until installation.
Applications
- Data Centers
- Enterprise Networks
- FTTX Systems
- Rack-mount fiber enclosures
- Wall-mount fiber enclosures
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Part Number | PML12ASC0S01 |
| Connector Type | SC/APC |
| Fiber Count | 12 |
| Fiber Type | Singlemode BIF (Bend Insensitive) |
| Buffer Size | 900μm |
Frequently Asked Questions
What type of fiber is used in this pigtail assembly?
This assembly uses Singlemode Bend Insensitive Fiber (BIF).
Are the connectors pre-polished?
Yes, the SC/APC connectors are factory-polished and terminated.
Can this be used with non-AFL enclosures?
The Polimod system is designed for specific AFL enclosure footprints; please verify your enclosure compatibility before installation.
What is the primary benefit of SC/APC?
SC/APC connectors provide superior return loss performance compared to UPC, making them ideal for high-bandwidth sensitive applications.
Is this a single-use package?
This kit contains one complete Polimod plate and pigtail set per box.
