Overview

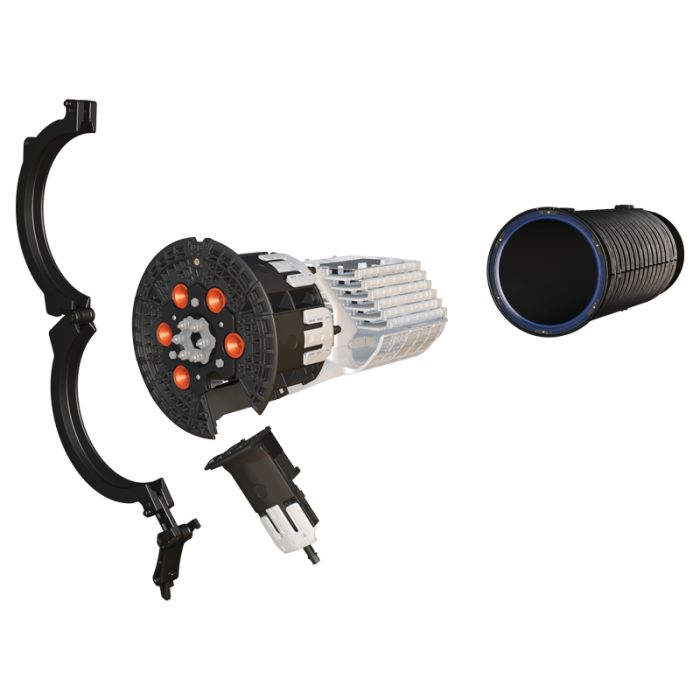

The AFL Apex X-2S is a robust, sealed splice closure engineered for high-density fiber management in both aerial and below-grade environments. Utilizing a specialized butt configuration, this closure provides reliable protection for critical optical fiber splices in outside plant networks. The unit is designed to maintain seal integrity while allowing for efficient cable management and future expansion.
The closure features a unique wedge-based cable sealing system that allows for tool-less release and individual port access, facilitating easy add-on of cables without disturbing existing connections. Its internal architecture includes a centralized organizer for up to 6 splice trays and a dedicated slack storage basket, providing an orderly environment for routing and securing loose tube or ribbon fiber slack.
Key Features
-
Individual Cable Sealing
Features a tool-less, gel-based wedge system for each cable port, ensuring quick access and maintenance. -
High Splice Capacity
Supports up to 216 single fusion, 432 mass fusion, or 1728 rollable ribbon splices. -
Integrated Slack Storage
Includes a plastic slack storage basket with numerous tie-down points for effective fiber management. -
Modular Splice Trays
Hinging, lockable trays accommodate single, mass fusion, and mechanical splices or passive optical splitters. -
Robust O-Ring Seal
Dome-to-base seal is retained in the dome for durability and is field-replaceable if required. -
Flexible Cable Entry
Equipped with six ports and supports up to 16 drop cables via optional multi-drop entry kits.
Applications
- Above-grade pole mount installations
- Below-grade manhole or handhole fiber protection
- FTTx distribution networks
- Butt configuration splice points
Package Contents

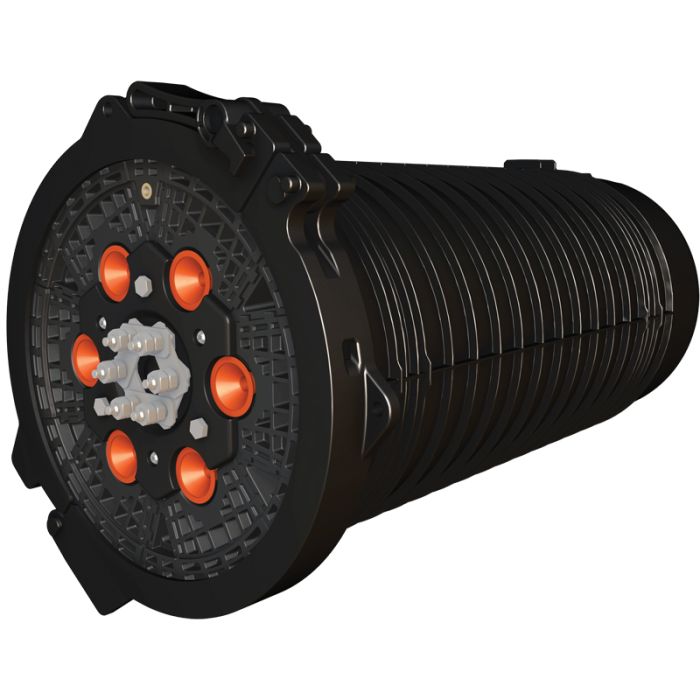

- Apex X-2S Dome Closure
- Slack Storage Basket
- Strain Relief Kits
- Ground Lugs
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Series | Apex™ |
| Model | X-2S |
| Part Number | AX2SBX022X |
| Single Fusion Capacity | 216 |
| Mass Fusion Capacity (Standard) | 432 |
| Mass Fusion Capacity (Rollable) | 1728 |
| Cable Ports | 6 |
| Sealing Type | Gel-sealed, wedge system |
Frequently Asked Questions
Can I add more cables to the closure later?
Yes, the closure features a wedge system that allows you to open individual cable ports to add new cables without disturbing existing fiber.
Is the dome seal replaceable?
Yes, the dome-to-base O-ring seal is retained to prevent loss but is fully replaceable if needed.
What types of fiber does this support?
It supports single fiber, mass fusion ribbon, and rollable ribbon types like AFL SpiderWeb Ribbon (SWR).
Does it include a slack storage basket?
Yes, this unit comes configured with a plastic slack storage basket for internal fiber and tube management.
Are splice trays included?
This specific part number includes the basket, strain relief, and ground lugs; please consult tray compatibility charts for specific internal configuration requirements.
