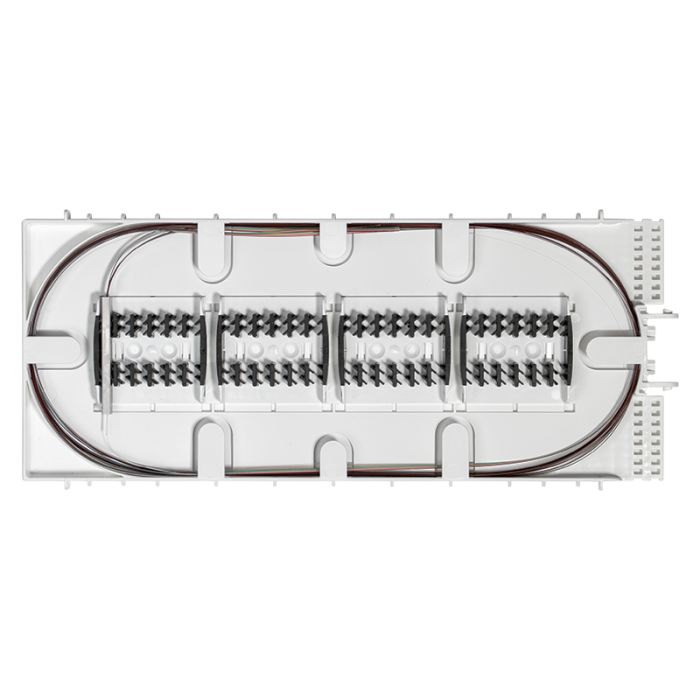

AFL Splice Tray Apex™ X-2 with (4) Splice Modules (36 Single Splices or 144 Ribbon Fiber Splices)

Overview

The AFL Apex™ X-2 Splice Tray is a versatile fiber management solution designed for high-density environments. This unit comes fully loaded with four universal splice modules, providing the flexibility to accommodate single fusion, mass fusion, and mechanical splices, as well as passive optical splitters. Its design eliminates the need for stocking multiple tray types, streamlining inventory for complex network deployments.

Engineered for efficiency, the trays are organized in a hinging array that facilitates easy access to splices and slack storage. They feature an automatic locking mechanism when tilted into the upward position, ensuring stability and convenience during maintenance or installation in professional data center and outside plant environments.

Key Features

• Universal Splice Modules
  Supports single fusion, mass fusion, and mechanical splices, reducing the need for multiple part numbers.
• Hinging Array Design
  Trays hinge for organized access to splices and underlying slack storage.
• Automatic Locking
  Locks securely when tilted upward for safer maintenance procedures.
• High Splice Density
  Capacity for up to 36 single fusion or 144 ribbon fiber splices in a single tray.
• Splitter Compatibility
  Designed to house passive optical components like PLC splitters within the same module footprint.
• Modular Flexibility
  Reduces stocking requirements by providing a single solution for multiple splice configurations.

Applications

• Data Center Fiber Management
• Outside Plant (OSP) Enclosures
• FTTX Network Distribution
• High-Density Ribbon Fiber Splicing

Technical Specifications

Frequently Asked Questions

What is the capacity of a single splice module?
Each universal module holds up to 18 single fusion splices, 6 mass fusion splices (12 if double-stacked), or 6 mechanical splices.

Does this tray support passive optical splitters?
Yes, the universal splice modules are designed to hold passive optical splitters alongside standard fusion or mechanical splices.

How do the trays lock during maintenance?
The trays feature a hinging mechanism that automatically locks when tilted to the upward position.

Is this tray compatible with ribbon fiber?
Yes, this tray supports up to 144 ribbon fiber splices when using the included modules.

Is this an AFL branded product?
Yes, this is an authentic AFL Apex™ series component.
