AFL ST Connector Multimode FastConnector 62.5um 900um, 6pk

Overview

The AFL FastConnector is a factory pre-polished, field-installable ST connector designed to simplify fiber terminations without the need for manual polishing or epoxy. Utilizing proven mechanical splice technology, it ensures precision fiber alignment and consistent, low-loss performance in various field environments.

These connectors are engineered for rapid deployment, featuring a factory pre-cleaved fiber stub and index-matching gel. The design allows for immediate termination onto multimode optical fibers. It is well-suited for premise environments, LAN patch panels, and direct equipment terminations where speed and reliability are required.

Key Features

• Pre-Stubbed Ferrule
  Factory-polished end face eliminates the need for field polishing, significantly reducing installation time.
• Mechanical Splice Technology
  Ensures precision fiber alignment for consistent low-loss connectivity.
• No Epoxy Required
  Simplifies the termination process by removing the need for adhesives and curing time.
• Visual Fault Locator (VFL) Compatible
  Integrated translucent wedge allows for easy pass/fail testing with a standard VFL.
• Fiber Reseatability
  Allows for potential adjustment or re-termination if necessary during the installation process.
• Industry Standard Identification
  Color-coded components ensure accurate fiber identification post-installation.

Applications

• LAN environments
• Premise wiring
• Direct equipment termination
• Fiber desk connections

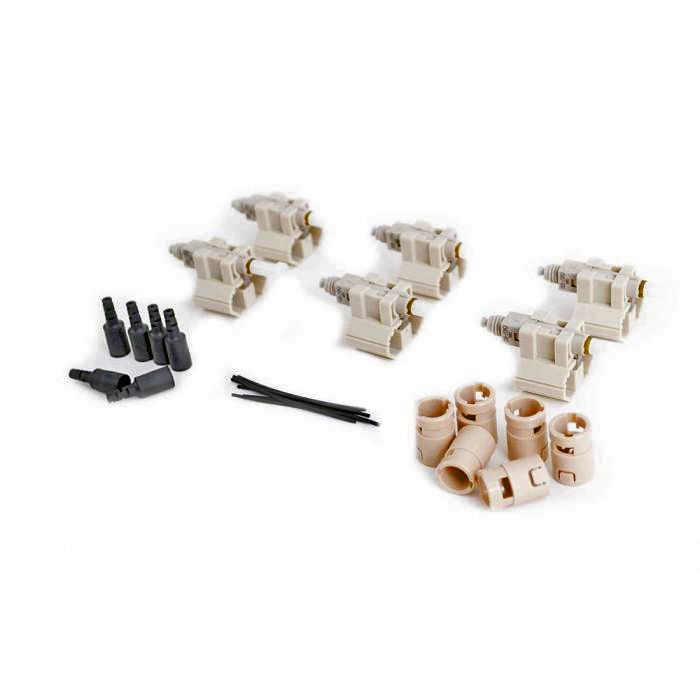

Package Contents

• 6x Multimode ST FastConnectors
• 6x Installation Wedge Clips

Technical Specifications

Frequently Asked Questions

Does this connector require epoxy?
No, the AFL FastConnector uses mechanical splice technology, eliminating the need for epoxy or field polishing.

Is it compatible with 250µm fiber?
Yes, it is compatible with 250µm and 900µm optical fibers.

How can I verify the termination?
The connector features a translucent wedge that allows you to use a common Visual Fault Locator (VFL) to see a pass/fail signal.

Can the fiber be reseated?
Yes, the design allows for the fiber to be reseated if needed during the installation process.

Is polishing required in the field?
No, the connector comes with a factory pre-polished ferrule, which removes the need for field polishing.
