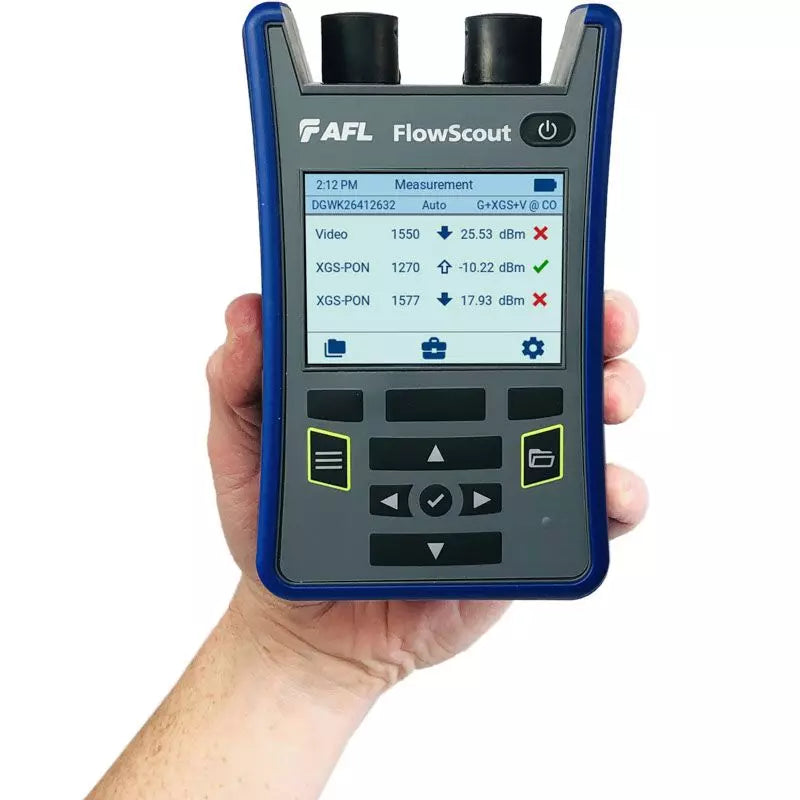

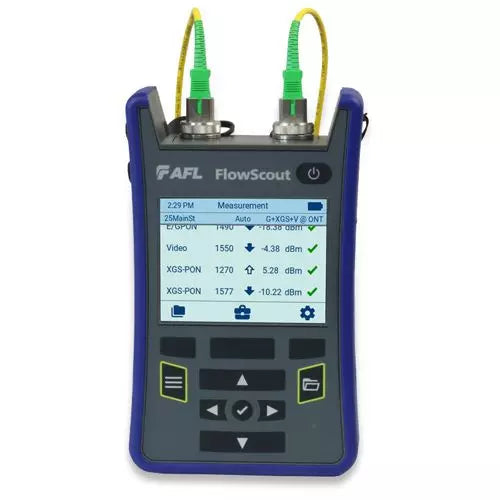

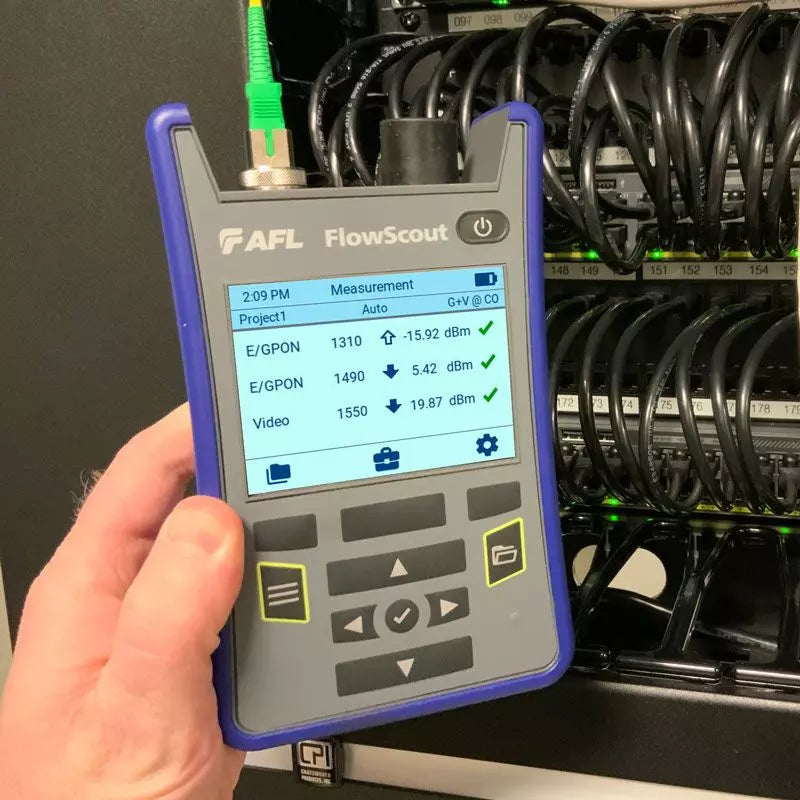

AFL TPPM-XG-0900PR FlowScout PON Power Meter, GPON/XGS-PON/Video

Overview

The AFL TPPM-XG-0900PR FlowScout™ PON Power Meter is a specialized testing instrument designed to automatically detect and measure optical power levels across multiple PON network standards. It is engineered for the installation and troubleshooting of BPON, EPON, GPON, 10G-EPON, XG-PON, and XGS-PON networks, supporting concurrent wavelength detection for up to five wavelengths.

Built for field use, this meter features a large, intuitive color touchscreen and field-swappable connector adapters, allowing technicians to perform tests without complex setups or extensive training. It delivers pass/fail assessment results in under three seconds, significantly streamlining field operations and site documentation.

Designed for demanding environments, the FlowScout meter is rated IP54 for water resistance and dust protection. It includes integrated file management, USB data transfer, and a QR code feature to simplify the collection and organization of test data directly from the field.

Key Features

• Multi-Wavelength PON Testing
  Supports testing for BPON, EPON, GPON, 10G-EPON, XG-PON, and XGS-PON networks, ensuring versatility across diverse fiber deployments.
• Automated Pass/Fail Analysis
  Provides clear, instant pass/fail feedback in under three seconds, reducing errors and saving time during installation.
• Large Color Touchscreen
  Ensures ease of use and high visibility for test results in various lighting conditions.
• Field-Swappable Connectors
  Allows technicians to switch between different connector types quickly to match the specific network interface.
• Rugged IP54 Protection
  Durable, water-resistant housing ensures the equipment remains protected during outdoor field operations.
• Integrated Data Management
  Features internal file management and USB connectivity for easy transfer of test reports to a PC.
• QR Data Collection
  Allows quick and efficient transmission of test results to any smart device for rapid reporting.

Applications

• PON Network Installation
• GPON and XGS-PON Service Activation
• Troubleshooting PON Network Links
• Upstream and Downstream Power Verification

Package Contents

• TPPM-XG-0900PR PON Power Meter
• Rechargeable Li-polymer battery
• SC/APC adapter cap
• 2x SC/APC to SC/APC jumpers
• USB-A to USB-C charge & data transfer cable
• AC plug
• One-Click cleaner Mini-500
• Carry case

Technical Specifications

Frequently Asked Questions

What networks can this meter test?
It supports BPON, EPON, GPON, 10G-EPON, XG-PON, and XGS-PON networks.

How fast is the power measurement?
The meter provides test results in 3 seconds or less.

Are the connectors replaceable?
Yes, the unit features field-swappable connector adapters.

Does this unit store results?
Yes, it has a built-in file management system for organizing test data.

How do I transfer data?
Results can be transferred via USB to a PC or collected using the QR code feature with a smart device.
