AFL TS100-60 FlexScan 1650nm FTTH PON Troubleshooter Basic Kit

Fosco Connect Part No.: TS100-60-BAS-P2

  • $ 5,540.00 or

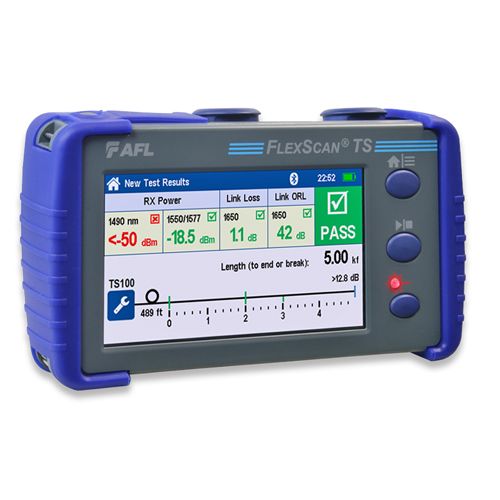

AFL TS100-60 FlexScan 1650nm FTTH PON Troubleshooter Basic Kit

The AFL FlexScan TS100-60 1650nm Filtered Live PON Troubleshooter is used for testing to splitter - to automatically detect, identify, and locate single-mode optical network issues, plus recommend corrective actions. It has an integrated VFL, power meter, light source and Bluetooth/WiFi. With a dual-wavelength power meter, the optical troubleshooter will verify GPON, video and XG/XGS-PON or 10GEPON power levels. Test modes include: FleXpress Fault Locate, OLS/OPM and Inspection. Maximum link loss is ≤18 dB. The tester has a 4.3" LCD touchscreen, 4 GB internal memory (>5000 traces typical) and external data storage via USB, Bluetooth, or Wi-Fi. It can be easily paired with FOCIS connector inspection probes.

The AFL TS100-60-BAS-P2-W1-ENG-US basic kit includes the main unit, AC charger, rechargeable battery, carry strap, USB cable, SC/2.5mm connector adapters, soft carry case, and TRM 3.0 Test Results Manager software.

AFL FlexScan TS100 FTTH PON Troubleshooter Datasheet
