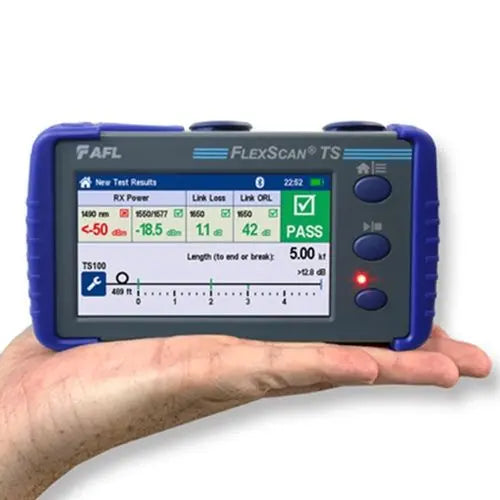

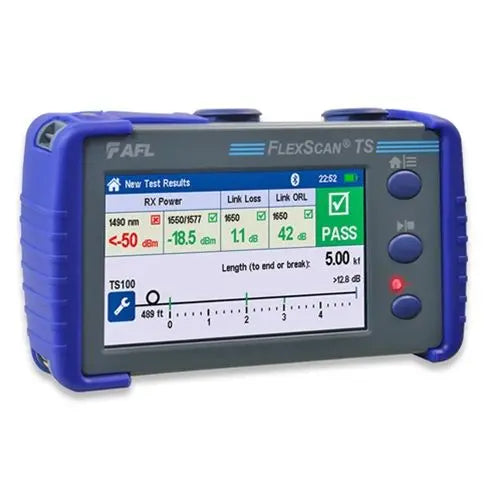

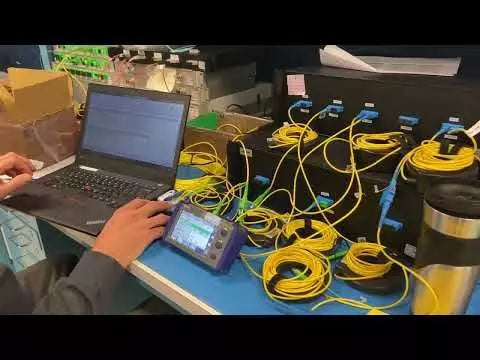

The AFL FlexScan TS100-60 1650nm Filtered Live PON Troubleshooter is a specialized test instrument designed for FTTH (Fiber to the Home) network maintenance. Its primary function is to automatically detect, identify, and locate single-mode optical network issues beyond the splitter, providing clear recommendations for corrective actions. This enables technicians to isolate faults in live PON environments efficiently.
Constructed for field use, the device features an integrated VFL, optical power meter, and light source, along with Bluetooth and Wi-Fi connectivity for data transfer. It supports multiple test modes including FleXpress Fault Locate, OLS/OPM, and inspection. With a 4.3" LCD touchscreen and robust internal memory, it is designed for demanding outdoor operating environments.
Key Features
-
Filtered 1650nm Wavelength
Optimized for testing live PON networks to ensure accurate fault location without disrupting service. -
Automated Fault Detection
Automatically identifies and locates link issues, reducing the need for manual trace analysis. -
Integrated Multi-Tool Functionality
Combines VFL, power meter, and light source in one handheld unit for simplified field testing. -
Dual-Wavelength OPM
Verifies GPON, video, and XG/XGS-PON or 10GEPON power levels for comprehensive network verification. -
Touchscreen Interface
Features a 4.3" LCD touchscreen for intuitive navigation and operation in the field. -
Advanced Connectivity
Built-in Bluetooth and Wi-Fi allow for easy data management and pairing with connector inspection probes.
Applications
- FTTH PON network troubleshooting
- Live fiber network fault location
- GPON and XG/XGS-PON power level verification
- Splitter-based network maintenance
Package Contents
- TS100-60 main unit
- AC charger
- Rechargeable battery
- Carry strap
- USB cable
- SC/2.5mm connector adapters
- Soft carry case
- TRM 3.0 Test Results Manager software
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | TS100-60-BAS-P2 |
| Operating Wavelength | 1650nm (Filtered) |
| Max Link Loss | ≤18 dB |
| Display | 4.3" LCD touchscreen |
| Internal Memory | 4 GB (>5000 traces) |
| Connectivity | USB, Bluetooth, Wi-Fi |
Frequently Asked Questions
What is the primary purpose of the 1650nm wavelength?
The 1650nm wavelength is used for filtered, out-of-band testing on live PON networks, preventing interference with active subscriber traffic.
Does this unit include inspection capabilities?
Yes, it is designed to pair with FOCIS connector inspection probes for verifying fiber end-face quality.
What software is included for reporting?
The kit includes TRM 3.0 Test Results Manager software for analyzing and managing test reports.
Is this unit suitable for testing through splitters?
Yes, it is specifically optimized for testing to splitter locations in FTTH networks.
Can the data be transferred wirelessly?
Yes, the unit supports both Bluetooth and Wi-Fi for efficient data transfer and connectivity.
