Overview
The AFL FlexScan TS100-60 Professional Kit is a specialized test solution designed for live 1650nm FTTH PON troubleshooting. By utilizing a filtered optical port, it enables technicians to perform accurate fault location and loss testing on active networks without disrupting subscriber services. This unit is built to automatically detect, identify, and locate single-mode optical network issues, providing actionable data to resolve connectivity problems efficiently.

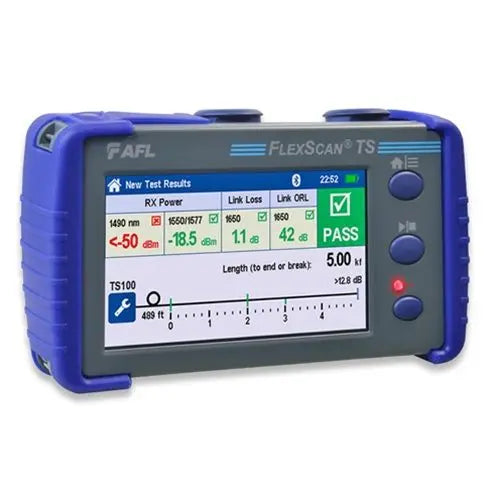

This pro kit includes the comprehensive FlexScan troubleshooter integrated with the FOCIS Flex connector inspection probe, which supports IEC pass/fail analysis. The system features an intuitive 4.3" LCD touchscreen, integrated VFL, power meter, and light source, along with Bluetooth and WiFi connectivity for data management. Designed for field technicians, it serves as an all-in-one tool for verifying GPON, video, and XG/XGS-PON or 10GEPON power levels.
Key Features
-
1650nm Filtered Port
Allows for non-disruptive testing of live PON networks by filtering out upstream and downstream traffic. -
FOCIS Flex Integration
Includes auto-focusing inspection probe to ensure connector end-faces meet IEC standards for cleanliness. -
Automated Fault Identification
Automatically detects and locates network issues, recommending corrective actions to reduce MTTR. -
Multi-PON Compatibility
Supports testing of GPON, video, and XG/XGS-PON or 10GEPON power levels for versatile network validation. -
Integrated Testing Suite
Combines VFL, optical power meter, and light source into a single handheld device, minimizing equipment overhead. -
Bluetooth/WiFi Connectivity
Enables seamless data transfer and remote management of test results.
Applications
- FTTH PON Troubleshooting
- Active Network Fault Location
- GPON and XG/XGS-PON Verification
- Connector End-face Inspection
- Link Loss Characterization

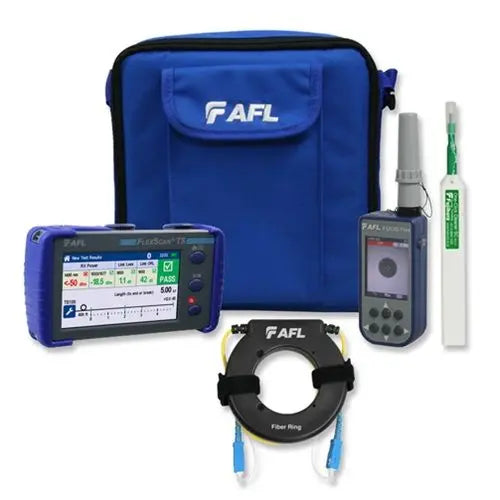

Package Contents
- Main TS100-60 Unit
- FOCIS Flex Inspection Probe
- AC Charger and Rechargeable Battery
- Carry Strap and Soft Case
- USB Cable
- SC/2.5mm Connector Adapters
- 150m SC/ASC Fiber Ring
- 2.5mm One-Click Cleaner
- SC-UPC Bulkhead Tip and 2.5mm UPC Ferrule Tip
- TRM 3.0 Advanced Software Upgrade
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | AFL |
| Model | TS100-60-PRO-P2 |
| Part Number | 812X732 |
| Wavelength | 1650nm (Filtered) |
| Maximum Link Loss | ≤18 dB |
| Display | 4.3" LCD Touchscreen |
| Internal Memory | 4 GB |
Frequently Asked Questions
Can I test live networks with this device?
Yes, the TS100-60 is designed with a 1650nm filtered port specifically for testing live PON networks without interrupting services.
Does this kit include everything needed for inspection?
Yes, the Pro kit includes the FOCIS Flex inspection probe, various tips, and a One-Click cleaner for comprehensive end-face analysis.
What types of PON networks are supported?
The device supports GPON, video, and XG/XGS-PON or 10GEPON network power level verification.
Is the unit handheld?
Yes, it is designed for portability with a 4.3" touchscreen and includes a carry strap for field use.
What software is included?
The Pro kit includes an upgrade to TRM 3.0 Advanced software for detailed reporting and data management.
