Overview

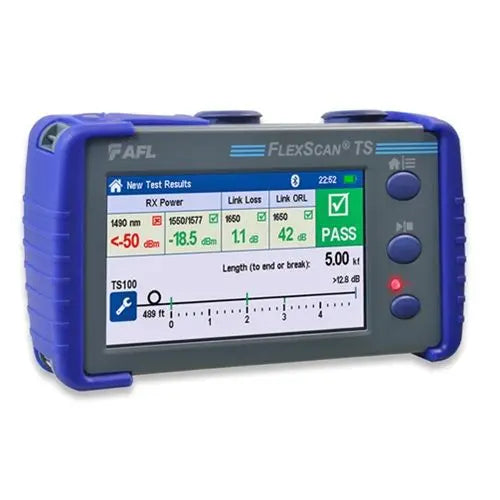

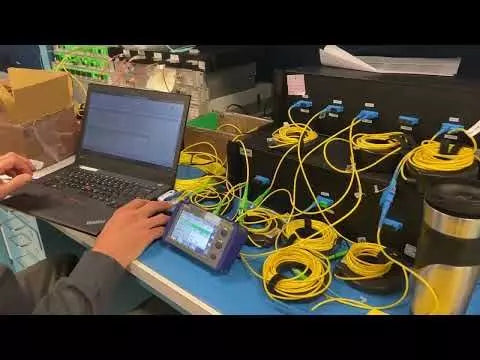

The AFL FlexScan TS100-70 is a specialized 1650nm filtered live PON troubleshooter designed for the rapid identification and location of optical network issues. It is purpose-built for technicians working in FTTH environments, supporting testing through optical splitters up to 1:64.
This compact device integrates a VFL, power meter, light source, and Bluetooth/WiFi connectivity, allowing for efficient network troubleshooting and automated recommendations for corrective actions. It provides verification of GPON, video, and XG/XGS-PON or 10GEPON power levels, making it a comprehensive tool for field operators.
Key Features
-
Filtered 1650nm Testing
Optimized for testing live PON networks without disrupting subscriber services. -
High Splitter Support
Supports testing through splitters with ratios up to 1:64. -
Integrated Test Suite
Includes VFL, power meter, and light source to reduce the need for multiple carry-on devices. -
Advanced Power Verification
Dual-wavelength power meter compatible with GPON, video, and XG/XGS-PON/10GEPON. -
Automated Fault Location
FleXpress fault location technology automatically identifies and locates fiber network issues. -
Connectivity Features
Integrated Bluetooth and Wi-Fi for efficient data transfer and wireless pairing with inspection probes. -
High-Capacity Memory
4 GB internal memory provides storage for over 5,000 traces. -
Intuitive Interface
Features a 4.3" LCD touchscreen for easy navigation and test result analysis.
Applications
- FTTH PON network troubleshooting
- Live fiber network testing (up to 1:64 splitters)
- GPON, XG-PON, XGS-PON, and 10GEPON link verification
- Fiber optic inspection and fault identification
Package Contents
- Main TS100-70 unit
- Rechargeable battery
- AC charger
- Soft carry case
- Carry strap
- USB cable
- SC/2.5mm connector adapters
- TRM 3.0 Test Results Manager software
Technical Specifications
| Specification | Value |
|---|---|
| Model | TS100-70-BAS-P2 |
| Testing Wavelength | 1650nm (Filtered) |
| Max Link Loss | ≤23dB |
| Internal Memory | 4 GB (>5000 traces) |
| Display | 4.3" LCD touchscreen |
| Connectivity | Bluetooth, Wi-Fi, USB |
Frequently Asked Questions
Is the TS100-70 suitable for testing live networks?
Yes, the TS100-70 uses a filtered 1650nm wavelength to test through splitters on live PON networks without impacting subscriber traffic.
What is the maximum split ratio supported?
The device is capable of testing through optical splitters with ratios up to 1:64.
What is included in the basic kit?
The kit includes the main unit, AC charger, rechargeable battery, carry strap, USB cable, SC/2.5mm adapters, soft case, and TRM 3.0 software.
Does it support inspection probes?
Yes, the unit can be paired with FOCIS series connector inspection probes.
How much data can the device store?
The 4GB internal memory supports the storage of more than 5,000 trace files.
