Scratches and stains on optical-fiber ferrule end faces can have a negative impact on transmission quality.

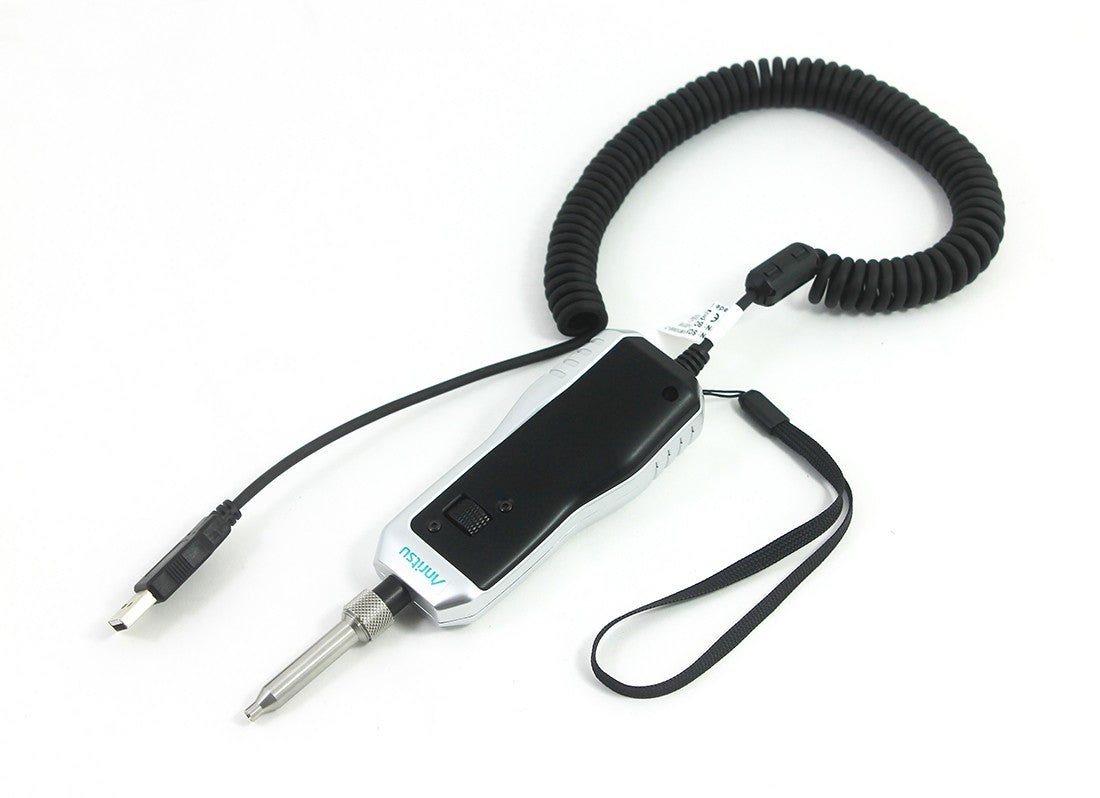

Connecting the Anritsu G0306B to the Network Master MT1000A/MT1100A series, ACCESS Master MT9083x2 series, Network Master MT9090A (µOTDR module) series or a Windows™ PC displays provides a safe way to view, analyze and document connector end face condition and quality.

This function is useful for determining whether a ferrule end face is clean, or whether connector replacement is required due to the presence of scratches.

Features:

• 400x digital probe
• USB 2.0/1.1 support
• Pre-installed drivers
• Automated connector Pass/Fail based on IEC 61300-3-35 standard

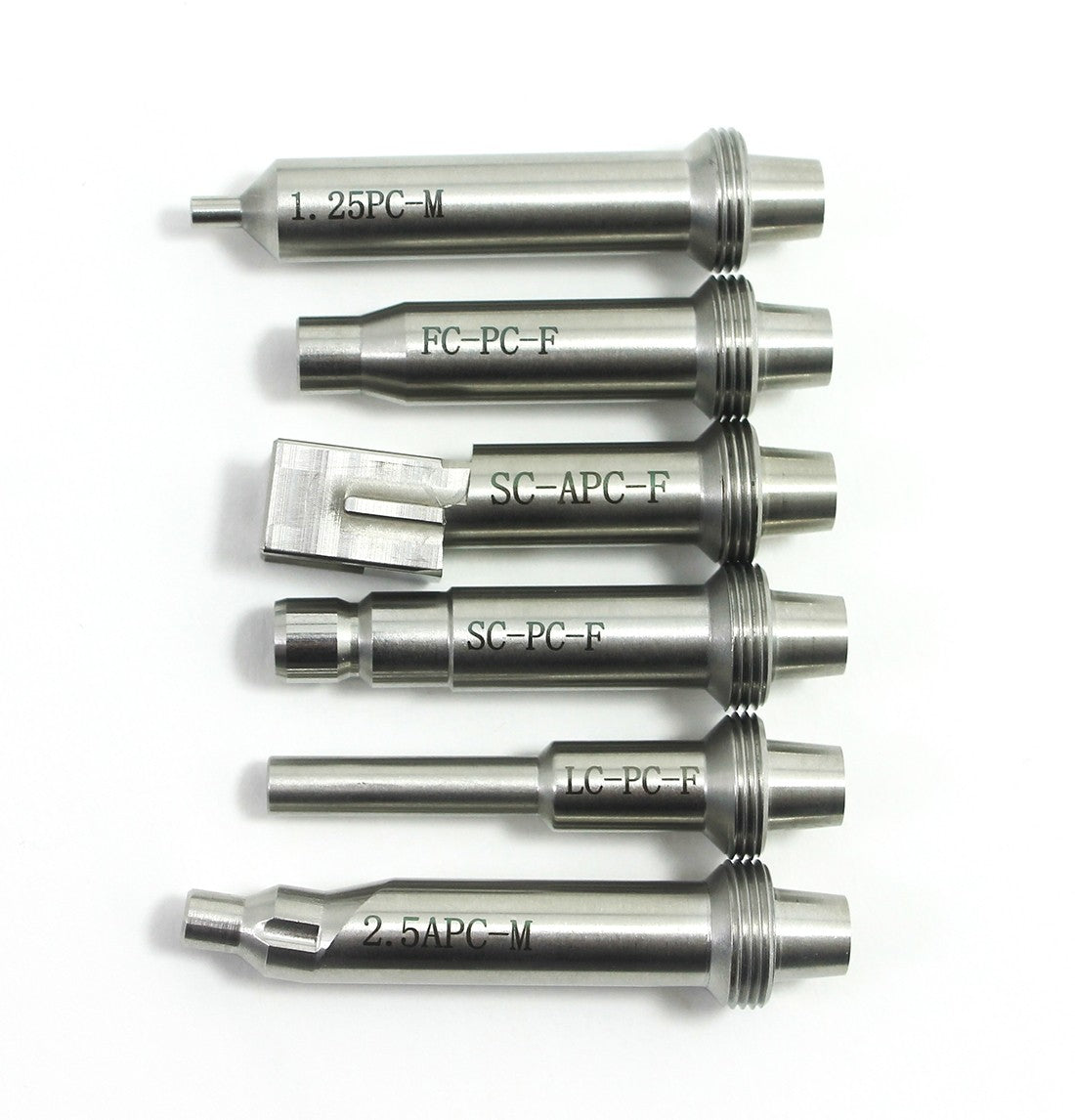

• Multiple connector tips
• Digital connector image is safer than direct view microscopes
