Overview

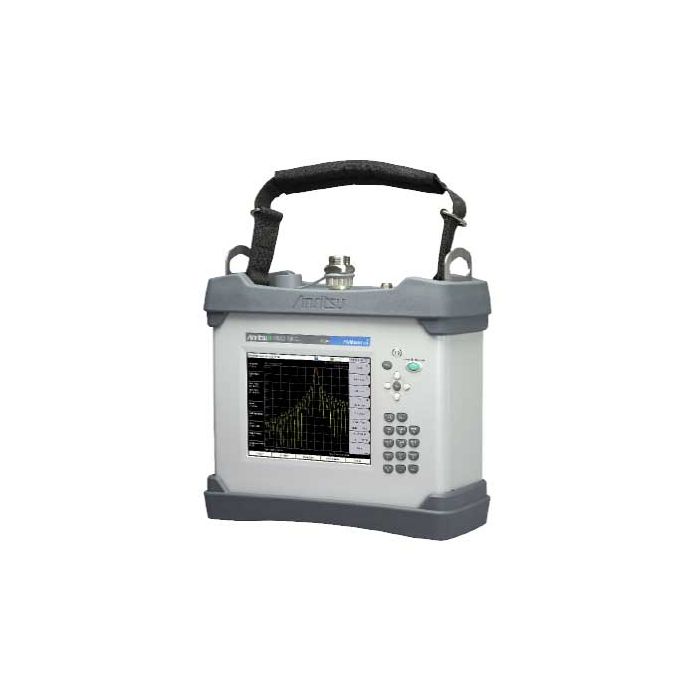

The Anritsu PIM Master MW82119B0700 is a high-performance passive intermodulation (PIM) analyzer designed to identify signal degradation caused by PIM in wireless communication systems. This base unit, equipped with the 700 MHz option, allows technicians to conduct highly accurate site testing to ensure the integrity of cellular infrastructure, specifically targeting LTE 700 MHz bands.
Engineered for portability and precision, the analyzer detects critical intermodulation products to isolate issues that standard cable and antenna testers might miss. By identifying sources of PIM, operators can effectively troubleshoot interference, optimize network capacity, and reduce dropped calls, ultimately improving overall system performance in demanding field environments.
Key Features
-
Advanced PIM Detection
Capable of detecting 3rd, 5th, and 7th order intermodulation products for comprehensive network health assessments. -
LTE 700 MHz Optimization
Specifically configured with Option 700 for precise testing in 700 MHz LTE frequency bands. -
Versatile Measurement Modes
Includes PIM vs. Time, Swept PIM, Noise Floor, and Distance-to-PIM measurements for thorough diagnostic capability. -
Variable Test Power
Offers an adjustable test power range from 20 dBm to 46 dBm to suit various testing requirements. -
Low Residual PIM
Features a residual PIM of -125 dBm (typical), ensuring high accuracy during critical testing scenarios. -
2-Port Testing
Supports 2-port PIM testing functionality to enable efficient and accurate verification of system components.
Applications
- Cellular tower site maintenance
- LTE network infrastructure troubleshooting
- Wireless system interference analysis
- Antenna and cable system verification
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Anritsu |
| Model | MW82119B0700 |
| Frequency Option | 700 MHz |
| Test Power | 20 dBm to 46 dBm |
| Residual PIM | -125 dBm (typical) |
| Warranty | 3 Years |
Frequently Asked Questions
What is the purpose of this PIM analyzer?
The PIM Master is used to detect passive intermodulation in antenna systems, which helps prevent signal interference and network performance degradation.
Does this unit support different order intermodulation products?
Yes, it is designed to detect 3rd, 5th, and 7th order intermodulation products.
What is the typical residual PIM for this model?
The unit features a typical residual PIM performance of -125 dBm.
Is this unit specifically for 700 MHz bands?
Yes, it is equipped with Option 700, making it optimized for 700 MHz LTE testing.
What is the warranty coverage included?
This product includes 3 years of warranty coverage.
