Overview

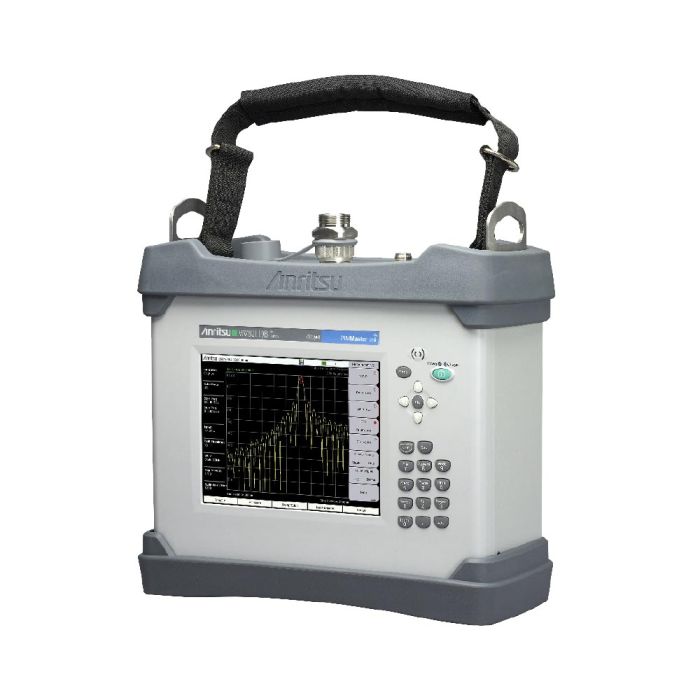

The Anritsu PIM Master B-series is a 40-Watt, battery-operated passive intermodulation (PIM) analyzer designed for critical field testing. It provides the essential capability to identify and mitigate PIM in wireless networks, helping operators optimize RF performance directly at the cell site or tower top.
Equipped with an intuitive user interface and a high-visibility display, this unit is engineered for challenging field conditions. It supports comprehensive testing of LTE remote radio head (RRH) installations, ensuring maximum signal integrity and throughput by detecting 3rd, 5th, and 7th order intermodulation products.
Key Features
-
PIM Testing Capability
Detects 3rd, 5th, and 7th order intermodulation products to isolate signal interference. -
Integrated Line Sweep
Features built-in Site Master line sweep capability for unified testing workflows. -
Portable Design
Battery-operated unit optimized for convenient tower-top and field-based RF analysis. -
High Power Output
Delivers 40 watts of power for accurate testing of high-power RF systems. -
Test Power Range
Adjustable test power from 20 dBm to 46 dBm for versatile testing environments. -
LTE Compatibility
Includes option 800 for specific 2-Port LTE 800 MHz PIM testing. -
Advanced Measurement Modes
Supports PIM vs. Time, Swept PIM, Noise Floor, and Distance-to-PIM measurements.
Applications
- LTE Remote Radio Head (RRH) installation
- Cell tower PIM and line sweep troubleshooting
- Wireless network RF optimization
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Anritsu |
| Model | MW82119B |
| Part Number | MW82119B0800 |
| Power Output | 40 Watts |
| Test Power Range | 20 dBm to 46 dBm |
| Residual PIM | -125 dBm (typical) |
| Capabilities | PIM vs. Time, Swept PIM, Noise Floor, Distance-to-PIM |
| Intermodulation Detection | 3rd, 5th, and 7th order |
Frequently Asked Questions
What is the primary function of this unit?
The PIM Master is used to detect and locate passive intermodulation products that degrade performance in wireless networks, particularly at LTE RRH installations.
Does this unit include line sweep capabilities?
Yes, it features Site Master line sweep capability integrated into the device.
What is the maximum test power?
The unit provides 40 watts of power, with a test power range adjustable between 20 dBm and 46 dBm.
Is it suitable for tower-top use?
Yes, its battery-operated design and portability are optimized for field and tower-top environments.
What does the option 800 signify?
Option 800 enables the unit for 2-Port LTE 800 MHz PIM testing.
