Overview

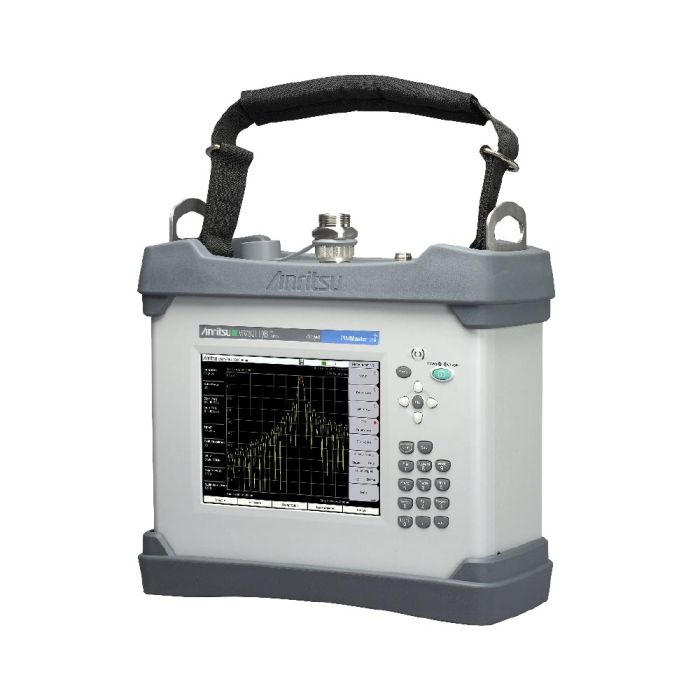

The Anritsu PIM Master MW82119B is a high-precision passive intermodulation (PIM) analyzer designed to verify the integrity of wireless network infrastructure. By identifying and locating sources of PIM, which can significantly degrade cell site performance, this instrument enables technicians to perform critical maintenance and troubleshooting in the field.
This base unit, configured with Option 900, is specifically engineered for testing E-GSM 900 MHz wireless systems. The device supports a wide range of test power levels, ensuring compatibility with various mobile network requirements and enabling accurate assessment of 3rd, 5th, and 7th order intermodulation products.
Key Features
-
Versatile Measurement Modes
Supports PIM vs. Time, Swept PIM, Noise Floor, and Distance-to-PIM modes to identify and isolate faults accurately. -
Multi-Order Detection
Capable of detecting 3rd, 5th, and 7th order intermodulation products to provide a complete picture of signal linearity. -
Optimized for 900 MHz
Features Option 900 for specialized 2-port E-GSM 900 MHz PIM testing. -
Adjustable Test Power
Allows users to set test power from 20 dBm to 46 dBm to match specific site requirements. -
High Sensitivity
Features a typical residual PIM of -125 dBm for precise performance assessment in demanding environments.
Applications
- Wireless Base Station Maintenance
- Mobile Network Troubleshooting
- Field Signal Linearity Assessment
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Anritsu |
| Part Number | MW82119B0900 |
| Test Power | 20 dBm to 46 dBm |
| Residual PIM | -125 dBm (typical) |
| Supported Modes | PIM vs. Time, Swept PIM, Noise Floor, Distance-to-PIM |
| Intermodulation Products | 3rd, 5th, and 7th order |
| Frequency Band | E-GSM 900 MHz |
Frequently Asked Questions
What is the primary function of this unit?
This unit is designed to analyze passive intermodulation (PIM) in E-GSM 900 MHz networks to ensure signal clarity and infrastructure health.
Does this analyzer support different power levels?
Yes, it supports adjustable test power ranging from 20 dBm to 46 dBm.
What types of intermodulation products can it detect?
It detects 3rd, 5th, and 7th order intermodulation products.
What frequency band is this specific model optimized for?
This model includes Option 900, which is optimized for 2-port E-GSM 900 MHz testing.
What is the typical residual PIM level?
The typical residual PIM level for this unit is -125 dBm.
