Overview

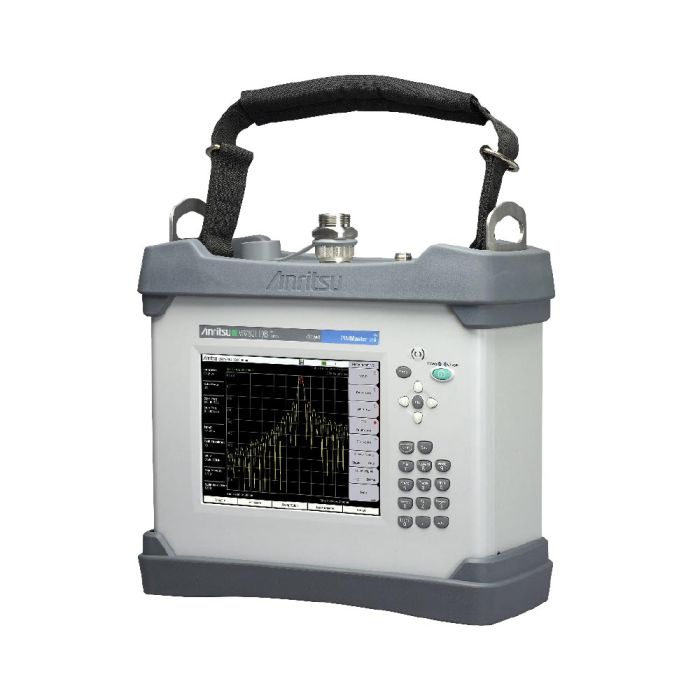

The Anritsu PIM Master MW82119B is a high-performance, battery-operated passive intermodulation (PIM) analyzer designed for the rigorous demands of wireless network installation and maintenance. This base unit, configured with Option 701, is engineered to identify and locate signal degradation sources in cellular infrastructure by detecting 3rd, 5th, and 7th order intermodulation products.
Engineered for field use, the analyzer provides essential diagnostic tools including PIM vs. Time, Swept PIM, Noise Floor, and Distance-to-PIM measurements. It is particularly effective for testing 700 MHz APT frequency bands, ensuring that network operators can verify signal integrity and eliminate external interference in modern LTE and multi-carrier environments.
Key Features
-
Advanced Intermodulation Detection
Capable of detecting 3rd, 5th, and 7th order intermodulation products for comprehensive network troubleshooting. -
Option 701 Configuration
Optimized for 2-Port APT 700 MHz PIM testing, ensuring compatibility with regional frequency standards. -
Variable Test Power
Adjustable test power settings from 20 dBm to 46 dBm to match specific link requirements. -
High Sensitivity Performance
Delivers a residual PIM rating of -125 dBm (typical), allowing for the detection of subtle signal issues. -
Versatile Measurement Modes
Includes PIM vs. Time, Swept PIM, Noise Floor, and Distance-to-PIM to pinpoint fault locations accurately. -
Portable Design
Battery-operated construction for deployment in remote or tower-top environments without requiring external power.
Applications
- Cellular base station commissioning and maintenance
- Identification of interference in wireless networks
- Validation of passive components and cable assemblies
- Network optimization and troubleshooting
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Anritsu |
| Model | MW82119B |
| Part Number | MW82119B0701 |
| Option | 701 (APT 700 MHz) |
| Test Power Range | 20 dBm to 46 dBm |
| Residual PIM | -125 dBm (typical) |
| Measurement Modes | PIM vs. Time, Swept PIM, Noise Floor, Distance-to-PIM |
Frequently Asked Questions
What does the 701 option provide?
The 701 option adds specific support for APT 700 MHz frequency band PIM testing.
Is this unit battery-powered?
Yes, the PIM Master MW82119B is designed for portable, battery-operated field use.
Can this unit detect multiple intermodulation orders?
Yes, it is designed to detect 3rd, 5th, and 7th order intermodulation products.
What is the typical residual PIM for this device?
The typical residual PIM is -125 dBm.
What is the power range for testing?
The analyzer supports test power levels ranging from 20 dBm up to 46 dBm.
