AP-N716, Wi-Fi 7 802.11be 9300 Mbps Indoor Access Point, Seamless Roaming & 2 × 2 MU-MIMO Three Radios, PicOS®, Manageable via AmpCon-Campus (Without PoE Injector)
Overview
The AP-N716 is an indoor access point utilizing the Wi-Fi 7 802.11be standard. It features a tri-radio design with 2x2:2 MU-MIMO configuration across the 2.4 GHz, 5 GHz, and 6 GHz bands. Designed for enterprise and campus environments, this device provides a total aggregate data rate of 9300 Mbps and is managed through the AmpCon-Campus platform.
Key Features
- Tri-Band Operation: Supports concurrent transmission across 2.4 GHz, 5 GHz, and 6 GHz spectrums, allowing for efficient traffic distribution across available wireless bands.
- Wi-Fi 7 Technology: Utilizes 802.11be standards and an ultra-wide 320 MHz bandwidth to support high-throughput data demands for bandwidth-intensive applications such as AR/VR and high-definition video conferencing.
- MU-MIMO Support: Employs 2x2 MU-MIMO across its three radios to manage multiple simultaneous device connections, facilitating concurrent data streams.
- Advanced Security Protocols: Integrates WPA3-Enterprise, OWE (Opportunistic Wireless Encryption), and MPSK for robust authentication and data protection in multi-user network environments.

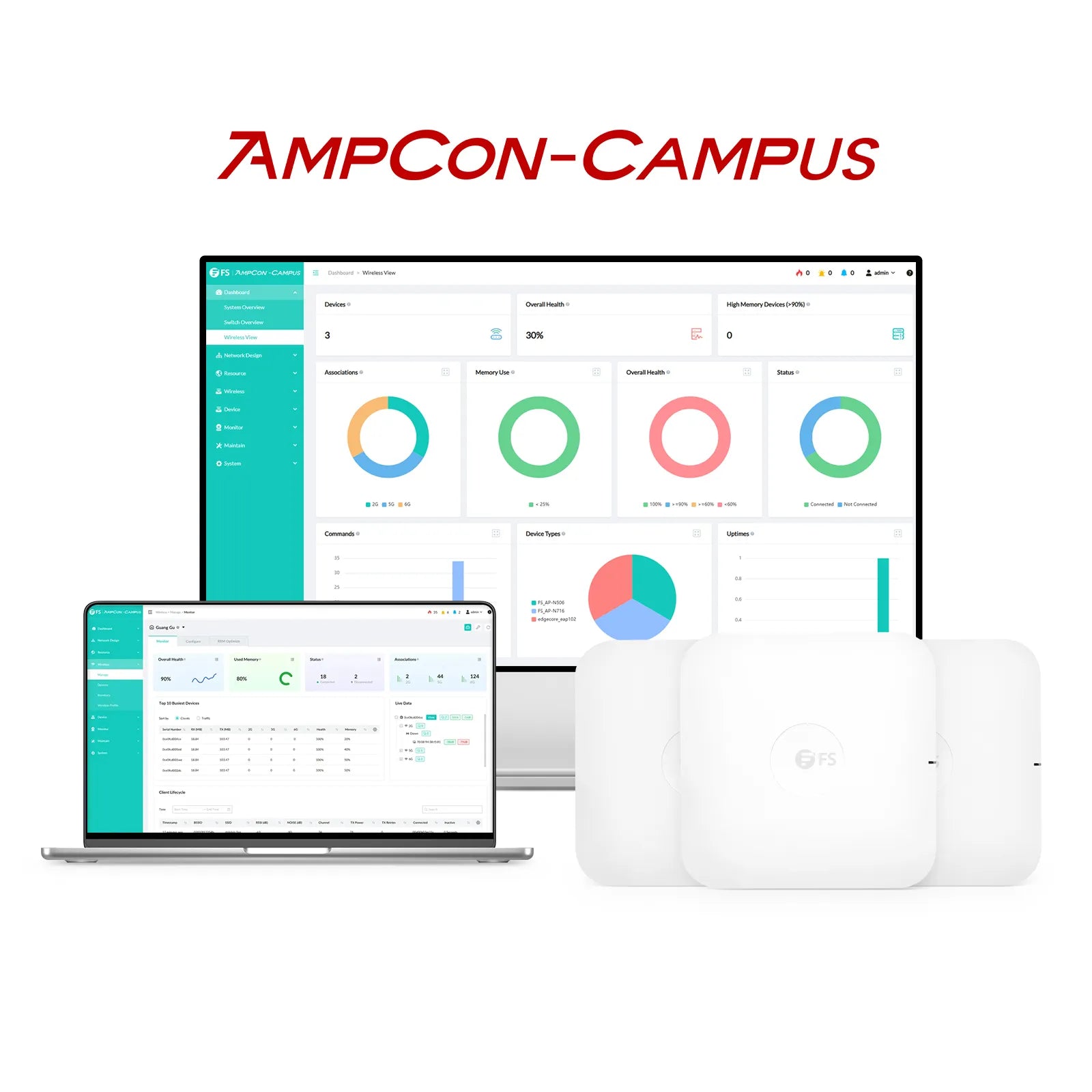

- Centralized Management: Compatible with the AmpCon-Campus management platform, which allows for license-free device onboarding and unified network configuration.
Technical Specifications
| Feature | Specification |
|---|---|
| Wireless Standard | Wi-Fi 7 (802.11be) |
| Total Aggregate Rate | 9300 Mbps |
| Radio Configuration | Tri-radio (2.4 GHz, 5 GHz, 6 GHz) |
| MIMO Configuration | 2x2:2 MU-MIMO |
| Channel Bandwidth | Up to 320 MHz |
| Management System | AmpCon-Campus |
| Operating System | PicOS |
| Security | WPA3-Enterprise, OWE, MPSK |
| VLAN Support | 4000+ VLANs |
