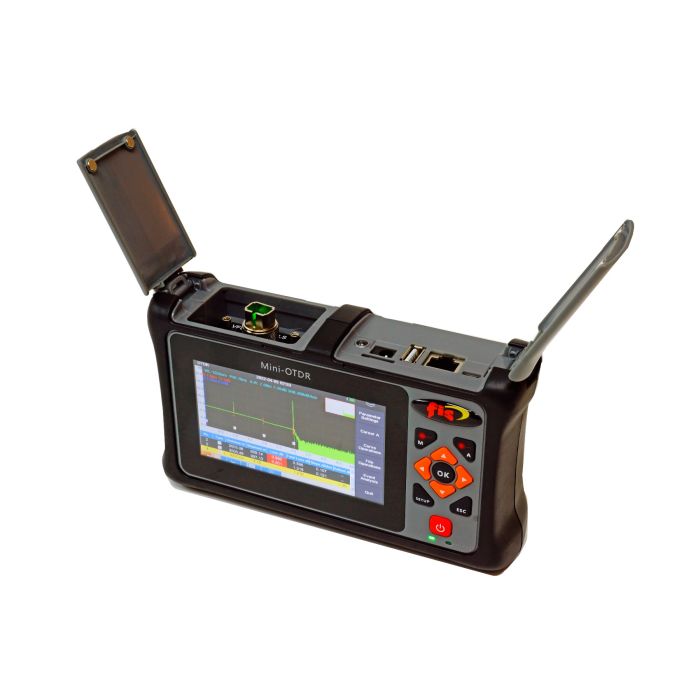

The Atlas Mini is a compact, handheld OTDR designed for efficient testing and measurement of singlemode fiber optic networks. Combining multiple testing functions into a single device, it is suitable for field technicians tasked with installing, troubleshooting, and verifying fiber optic cable performance in various environments.
This unit features a 26dB dynamic range at 1550nm, allowing for measurements up to 90km. It incorporates a comprehensive suite of tools, including an onboard Visual Fault Locator (VFL), Power Meter, and Light Source. The device provides data in the industry-standard .SOR format and supports batch PDF reporting, making it an effective tool for maintaining documentation standards in professional networking applications.
Key Features
-
Dual Wavelength Testing
Supports 1310nm and 1550nm testing, providing versatility for standard singlemode fiber installation verification. -
Integrated OLTS Functionality
Combines OTDR, power meter, and light source capabilities, reducing the amount of equipment needed for field testing. -
Graphical Event Map

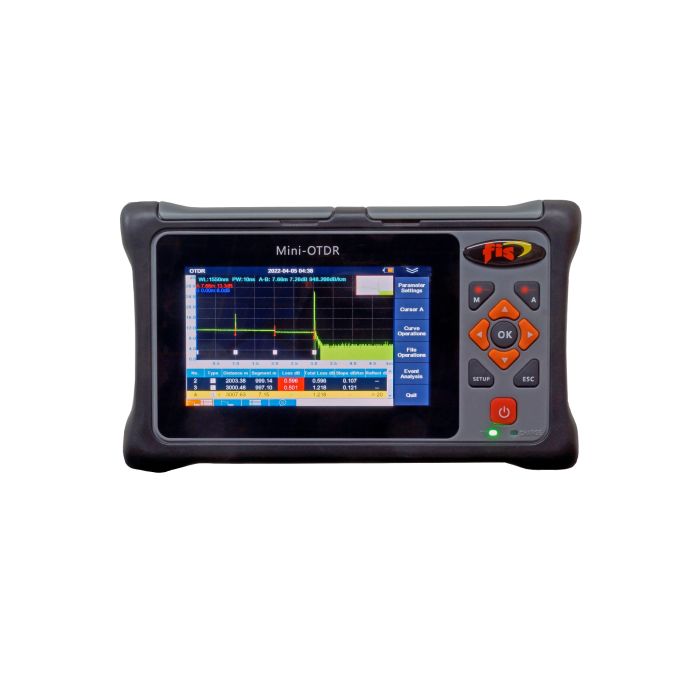

Uses the gMAP interface to convert complex scan data into an intuitive icon-based display for simplified event interpretation. -
Efficient Reporting
Includes software for generating professional, easy-to-read batch PDF reports from saved .SOR files. -
High-Resolution Display
Equipped with a 4.3-inch TFT screen (800 x 480 resolution) that supports touch-screen or hard-key operation. -
Rugged Field Utility
Internal lithium batteries provide at least 8 hours of continuous operation on a single charge.
Applications
- Fiber optic cable installation verification
- Fault location and troubleshooting
- Fiber optic network maintenance
- Splice and connector loss testing
Technical Specifications

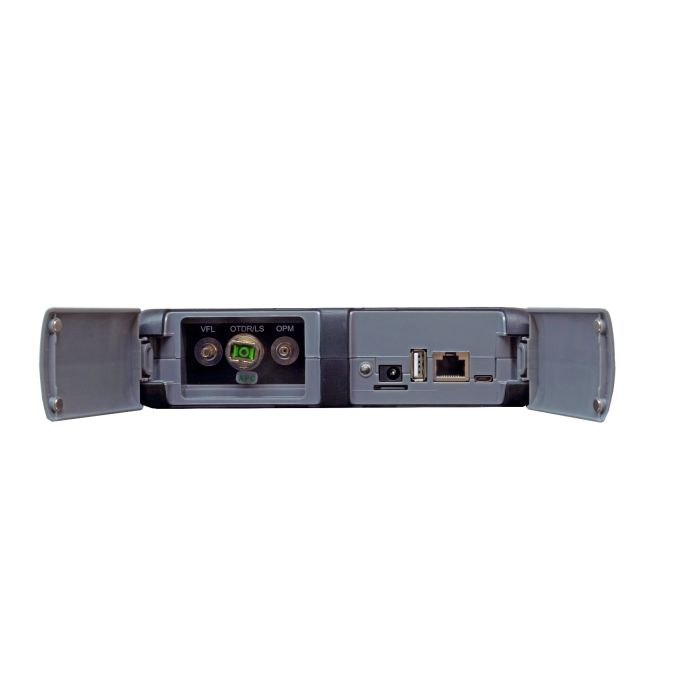

| Specification | Value |
|---|---|
| Wavelength | 1310/1550nm |
| Dynamic Range (1550nm) | 26dB |
| Measuring Range | 100m to 100km |
| Connector Type | SC/APC (with interchangeable SC/FC adapters) |
| Display | 4.3-inch TFT (800 x 480) |
| Data Format | .SOR |
| Battery Life | 8+ hours |
Frequently Asked Questions
What is the maximum distance the Atlas Mini can test?
The device is capable of testing and measuring fiber lengths up to 90km at 1550nm.
Does this unit come with reporting software?
Yes, it includes batch reporting software that generates professional PDF documents from your scan data.
What file format does the OTDR use?
The data is saved in the standard .SOR format for universal compatibility with analysis software.
Can I use this to inspect fiber end faces?
Yes, it supports an optional USB inspection probe, which is available separately.
Is the screen touch-sensitive?
Yes, the 4.3-inch display supports both touch-screen and hard-key inputs.
