Overview

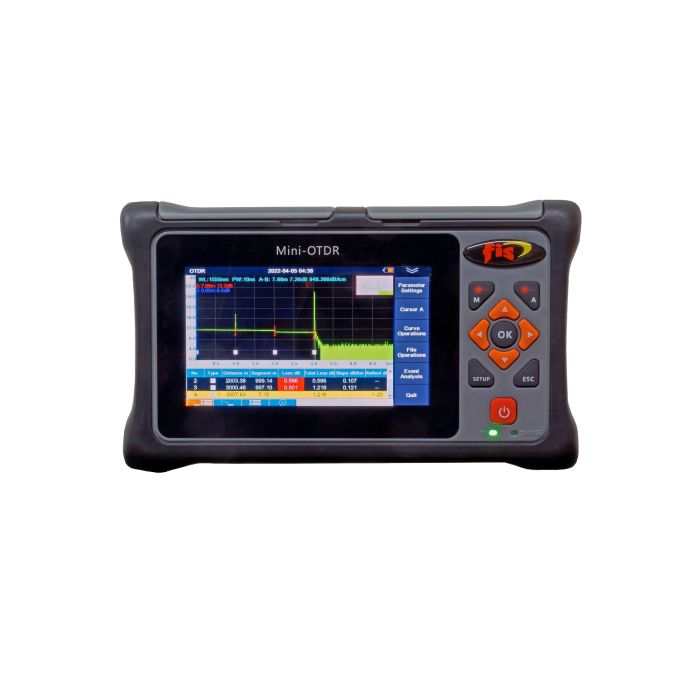

The Atlas Mini-OTDR is a versatile handheld testing device designed for professional fiber optic installation, troubleshooting, and verification. Engineered for singlemode applications, this unit integrates multiple testing functions into a single, compact, and field-ready platform, making it suitable for data center operators, field technicians, and network engineers.
The device provides a 26dB dynamic range at 1550nm, allowing for precise measurements over distances up to 100km. Featuring both touch screen and hard key interfaces, it facilitates efficient data management, including the ability to edit file names and line numbers directly on the device. It supports the industry-standard .SOR file format and includes software for generating comprehensive PDF batch reports, ensuring streamlined documentation for fiber optic projects.
Key Features
-
Integrated Test Suite
Combines OTDR, power meter, light source, visual fault locator (VFL), and optical loss test set (OLTS) functionality to reduce the number of tools required for testing. -
High-Resolution Display
Features a 4.3-inch TFT screen with 800 x 480 resolution for clear visualization of OTDR traces and event maps. -
Graphical Event Mapping
Utilizes gMAP software to interpret OTDR traces, displaying splices, connectors, and bends as easy-to-read icons for rapid fault identification. -
Extended Operation
Powered by lithium batteries capable of providing 8 or more hours of continuous operation on a full charge. -
Flexible Connectivity
Includes an APC OTDR port with SC and FC interchangeable adapters, and supports a USB-based video inspection probe. -
Batch Reporting
Includes reporting software that converts data into professional, easy-to-read PDF reports for improved project documentation.
Applications
- Singlemode fiber optic network installation
- Troubleshooting and fault location
- Optical power loss measurement
- Fiber link characterization
Technical Specifications
| Specification | Value |
|---|---|
| Wavelength | 1310/1550nm (Singlemode) |
| Dynamic Range | 26dB at 1550nm |
| Measuring Range | 100m to 100km |
| Screen | 4.3-inch TFT, 800 x 480 pixel |
| Data Format | .SOR |
| Battery Life | 8+ hours |
| Port Configuration | APC OTDR with SC/FC interchangeable adapters |
Frequently Asked Questions
What is the maximum distance the OTDR can test?
The device supports a measuring range setting of up to 100km.
Does this unit support reporting software?
Yes, it includes batch reporting software that allows for the creation of professional PDF reports.
What file format does the OTDR save?
The device saves data in the standard .SOR file format.
Can the battery support a full day of field work?
The unit is equipped with lithium batteries rated for 8 or more hours of operation on a full charge.
Does the unit support graphical mapping?
Yes, it features 'gMAP' software which displays fiber events as an easy-to-read set of icons.
