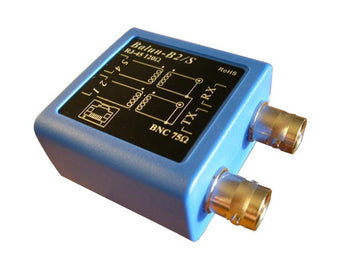

E1 passive impedance adapter 75 ohm BNC female to 120ohm twisted pair
Move your mouse over image or click to enlarge
E1 passive impedance adapter 75 ohm BNC female to 120ohm twisted pair E1 passive impedance adapter 75 ohm BNC female to 120ohm twisted pair E1 passive impedance adapter 75 ohm BNC female to 120ohm twisted pair

E1 passive impedance adapter 75 ohm BNC female to 120ohm twisted pair

CTC Union Part No.: Balun-B2S

  • $ 11.00 or


The Balun-B2S device allows conversion of E1 signal from balanced to unbalanced and back. BNC 75ohm interface is passively converted to 120 balanced twisted pair copper. Balun-B2S converts two female BNC's into a complete E1 RJ48c 120ohm interface.

Features of Balun-B2S

  • Conversion between BNC coax 75ohm and RJ48c twisted pair 120ohm
  • Low cost and compact and light design
  • No power required

Technical specifications

  • Connectors: two female BNC and one RJ48c shielded
  • RJ48c pin assignment: P1(+), P2(-)/ P4(+), P5(-)

Product Sheet:
