Overview

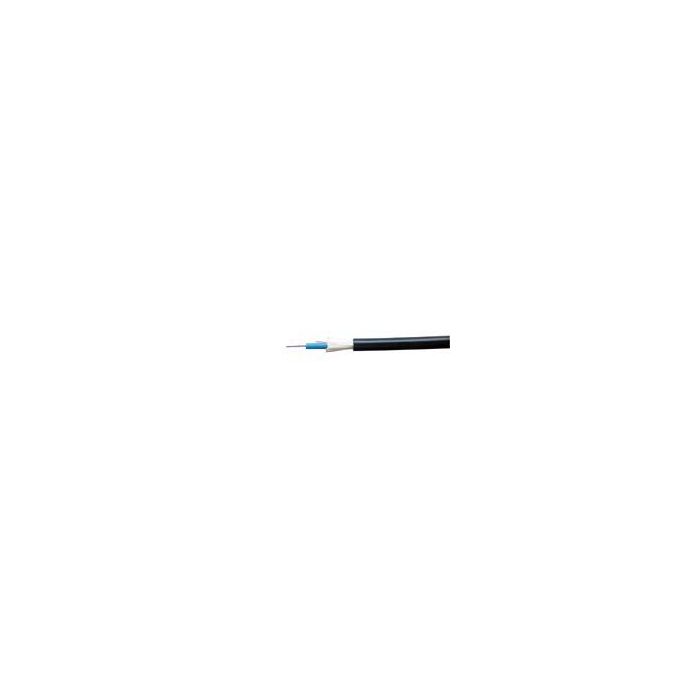

The Belden Central Loose Tube Armored Fiber Optic Cable is designed for robust outdoor deployments, providing a durable solution for campus OSP backbones and telecommunications trunking. This 12-fiber multimode cable features a central loose tube construction with water-blocking gel for moisture resistance, ensuring long-term integrity in harsh outdoor conditions.
Engineered for versatility, this cable includes corrugated steel armor to provide crush, impact, and abrasion resistance, making it suitable for direct burial and lashed aerial applications. Its design optimizes space with a compact overall diameter while maintaining the strength required for demanding installation environments.
Downloads
Key Features
-
Armored Construction
Features corrugated steel tape for superior crush and impact resistance, facilitating secure direct burial installation. -
Gel-Filled Buffer Tube
Fully waterblocked design prevents moisture ingress, protecting fiber performance in outdoor environments. -
Compact Design
Small outer diameter enables efficient use of conduit space and easier cable routing. -
Simplified Preparation
Optimized for quick and easy end preparation to reduce field termination time. -
High Tensile Strength
Supports 2700 N (600 lbs) during installation and 890 N (200 lbs) during long-term operation. -
Wide Temperature Rating
Designed for reliable operation in extreme environments ranging from -40°C to 70°C.
Applications
- Campus OSP backbones
- Telecommunications and data trunking
- Direct burial
- Lashed aerial installations
- Drop cable applications
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Belden |
| Part Number | FS3C01260 |
| Fiber Count | 12 |
| Mode | Multimode 50/125um OM3 |
| Cable Diameter | 10.4 mm (0.41 in) |
| Armor Type | Corrugated Steel Tape |
| Jacket Material | PE (Black) |
| Strength Member | Fiberglass |
| Operating Temperature | -40°C to 70°C |
| Min. Bend Radius (Installation) | 20 x OD |
| Standards | TIA/EIA-568.3-D, ICEA S-87-640 |
Frequently Asked Questions
Is this cable suitable for direct burial?
Yes, the corrugated steel armor provides the necessary protection for direct burial applications.
What is the operating temperature range?
The cable is rated for operation between -40°C and 70°C.
Does the cable contain water-blocking material?
Yes, the buffer tube is gel-filled and the core is wrapped with water-swellable tape.
What is the minimum bend radius?
The installation bend radius is 20 x OD, and the long-term bend radius is 15 x OD.
Is the jacket flame-retardant?
This cable uses a PE jacket; for Riser or LSZH requirements, please consult specific technical data sheets for alternatives.
