Overview

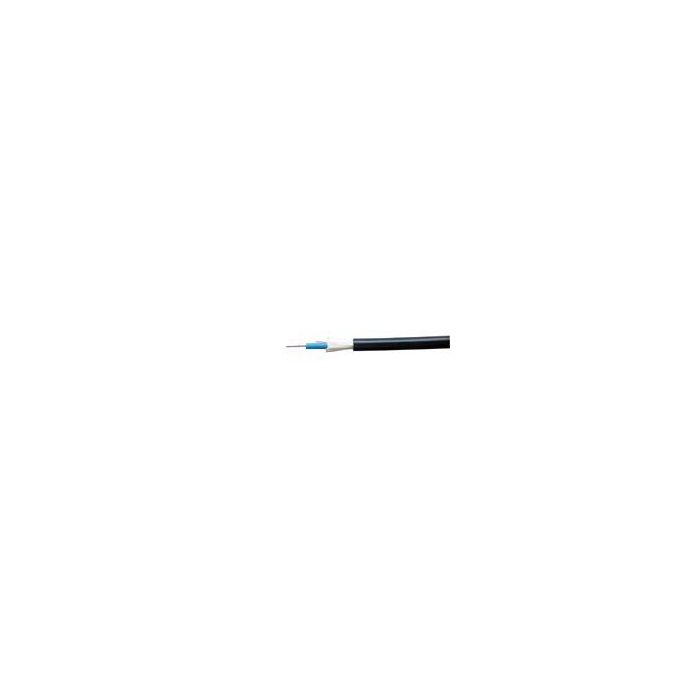

The Belden Central Loose Tube OSP cable is engineered for reliable outdoor connectivity in campus backbones and data trunking applications. This 12-fiber singlemode cable features a robust design that provides effective resistance against ozone, moisture, and extreme weather conditions.
The cable utilizes a gel-filled buffer tube to provide superior water blocking protection. Built for durability, it features a PE jacket and fiberglass strength members, ensuring it remains resistant to crush, impact, and abrasion during installation and long-term deployment.
Key Features
-
Water-Blocked Design
Features a gel-filled buffer tube that prevents moisture ingress, ensuring long-term optical signal integrity. -
High Durability
Constructed to be crush, impact, and abrasion resistant for demanding outdoor environments. -
Lightweight Handling
Designed without internal rods for easier handling and faster cable preparation in the field. -
Black PE Jacket
Provides protection against UV exposure and environmental degradation in outdoor applications. -
Fiberglass Strength Members
Reinforced with fiberglass to ensure structural stability and tensile strength. -
Industry Standard Color Coding
Utilizes TIA/EIA 598-B color coding for efficient identification and splicing.
Applications
- Campus OSP backbones
- Drop cable installations
- Telecommunications and data trunking
- Lashed aerial deployments
Technical Specifications
| Specification | Value |
|---|---|
| Fiber Count | 12 |
| Cable Outside Diameter | 8 mm (0.315 in) |
| Weight | 50 kg/km (34 lb/1000 ft) |
| Tensile Strength (Installation) | 2700 N (600 lbs) |
| Tensile Strength (Operation) | 890 N (200 lbs) |
| Jacket Material | PE |
| Operating Temperature | -40°C to 70°C |
| Min. Bend Radius (Installation) | 20 x OD |
| Min. Bend Radius (Long Term) | 15 x OD |
Frequently Asked Questions
Is this cable suitable for direct burial?
This cable is rated for OSP applications; however, verify specific installation requirements against local codes regarding conduit use.
What is the jacket color?
The outer jacket is black, providing UV resistance.
How is the fiber protected from water?
The cable uses a gel-filled buffer tube and a water-swellable tape core wrap for comprehensive moisture protection.
Is this cable compatible with TIA/EIA standards?
Yes, it complies with TIA/EIA-568.3-D and ICEA S-87-640 standards.
What is the minimum bend radius?
The minimum bend radius is 20 x OD during installation and 15 x OD long-term.
