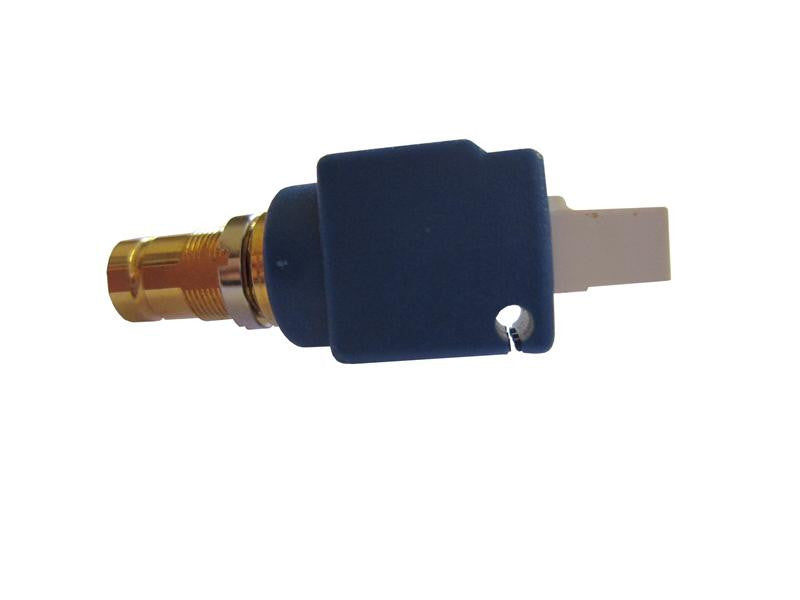

E1 passive impedance adapter 75 ohm 1.6/5.6 jack female to 120ohm twisted pair IDC
Move your mouse over image or click to enlarge
E1 passive impedance adapter 75 ohm 1.6/5.6 jack female to 120ohm twisted pair IDC E1 passive impedance adapter 75 ohm 1.6/5.6 jack female to 120ohm twisted pair IDC

E1 passive impedance adapter 75 ohm 1.6/5.6 jack female to 120ohm twisted pair IDC

CTC Union Part No.: BLN-3010

  • $ 9.00 or


The Balun-PS device allows conversion of E1 signal from balanced to unbalanced and back.

BNC 75ohm interface is passively converted to 120 balanced twisted pair copper.

Balun-PS converts two male BNC's (with pigtails, for convenient installation) into a complete E1 RJ48c 120ohm interface.

Features of Balun-PS

  • Conversion between dual male BNC coax 75ohm and RJ48c twisted pair 120ohm
  • Low cost, compact and light design, 6" pigtails for BNC flexibility
  • No power required
  • Technical specifications
  • Connectors: two male BNC with 6" pigtails and one RJ48c shielded
  • RJ48c pin assignment: P1(+), P2(-)/ P4(+), P5(-)

Product Sheet:
