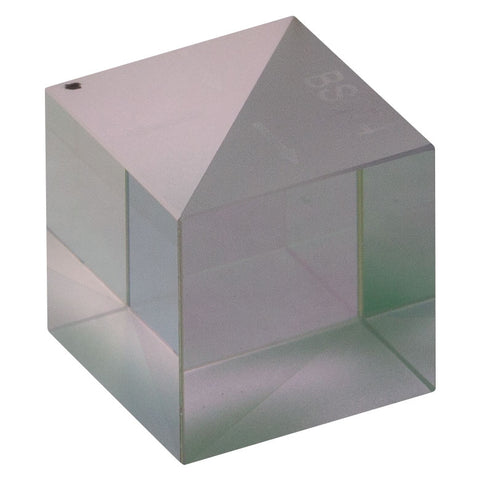

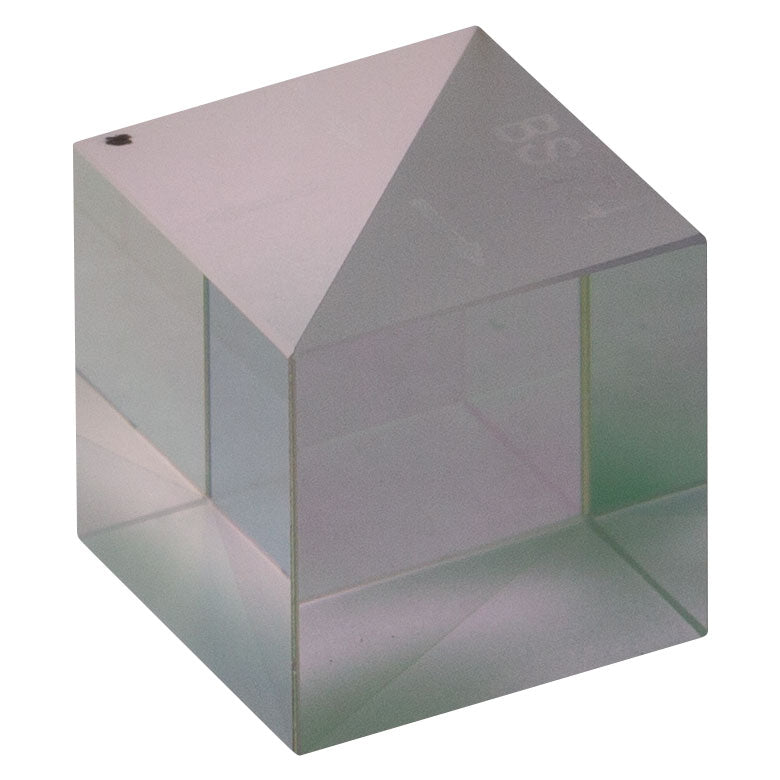

T-BS074 - 90:10 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 1/2"
T-BS074 - 90:10 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 1/2"
Size 1/2" (12.7 mm) Cube
| Item # | T-BS074 |
|---|---|
| Cube Side Length | 1/2" (12.7 mm) |
| Clear Aperture | >10.2 x 10.2 mm |
| Transmitted Wavefront Error |
<λ/4 |
| Transmitted Beam Deviation | 0° ± 5 arcmin |
| Overall Performance |
Tabs = 7 +10/-5%, Rabs = 87 ± 10%, and Tabs + Rabs > 85%, |Ts - Tp| < 10% and |Rs - Rp| < 10% |
