BURNDY SP-PAT750XT18V Patriot 12-Ton Crimper, 2.6Ah 18V NiMH

Fosco Connect Part No.: SP-PAT750XT18V

  • $ 6,525.00 or

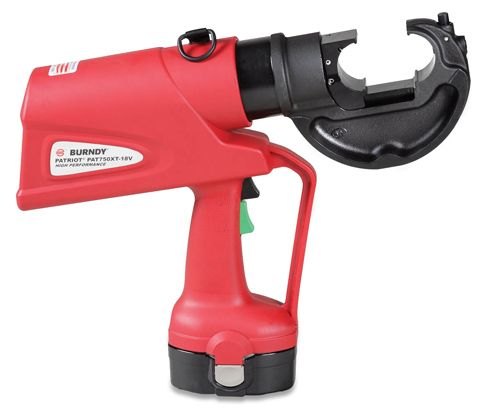

BURNDY SP-PAT750XT18V Patriot 12-Ton Crimper, 2.6Ah 18V NiMH

The BURNDY® SP-PAT750XT-18V Patriot is a battery-actuated self-contained hydraulic crimper. Crimp #8 AWG - 750 kcmil CU/AL and #4 AWG - 556.5 MCM ACSR conductors, terminals, splices, sleeves, taps, and 1/2" - 1" ground rods. The portable 18-volt tool provides 12 ton crimp force and special alignment guide for use on HYGROUND and other asymmetrical connectors. It features one-handed operation and 360° head rotation. A pop off sound and green light indicate properly completed crimps audibly and visibly. The high-voltage battery eliminates voltage depression (memory issues). It has a recharge time of less than 45 minutes.

The SP-PAT750XT crimper accepts all "U" dies which must be ordered separately. It comes with a tool retention lanyard, two high-capacity 2200 mA-hr Ni-MH batteries, 18-V battery charger, die compartment to hold "U" die sets and a durable high-impact formed carrying case. The 16.5-pound unit is 15.5" x 3.5" x 13.875". Two-year limited warranty on tool; one year on battery and charger.

Product Specification Sheet
