Cable Jetter Kit

Overview

The Cable Jetter Kit is a comprehensive solution designed to simplify the installation of fiber optic cables within microduct systems. It serves as an essential tool for technicians tasked with deploying fiber in environments where cable protection is paramount and conduit space is limited. By providing both air-assisted blowing and mechanical pushing capabilities, the kit ensures smooth installation through conduit runs, including those with multiple bends.

This kit is engineered for versatility, allowing users to install 3mm fiber optic cables, deploy 60-pound nylon pull strings, or assist in the installation of mule tape. It is compatible with 3/8-inch I.D. conduit and is designed for an operating pressure of up to 80 PSI. Its modular construction makes it a highly portable and efficient tool for data center, FTTX, and enterprise network installations.

Key Features

• Quick Connect System
  Features a 3/8-inch I.D. conduit connection for rapid setup and tool-free integration.
• Integrated Air Control
  Includes an air hookup with an integrated shutoff valve to manage pneumatic flow effectively.
• Mechanical Drive
  Provides physical pushing force to assist in navigating cables through complex conduit bends.
• Nylon Line Management
  Equipped with a dedicated spool holder to manage the nylon pull line during installation.
• Pneumatic Compatibility
  Optimized for use with external air compressors; maximum recommended operating pressure is 80 PSI.
• Versatile Application
  Capable of installing fiber optic cables up to 3mm in diameter or pull strings for future cable deployments.

Applications

• Microduct fiber optic cable installation
• FTTX network deployments
• Installation of pull strings and mule tape
• Enterprise and campus fiber cabling

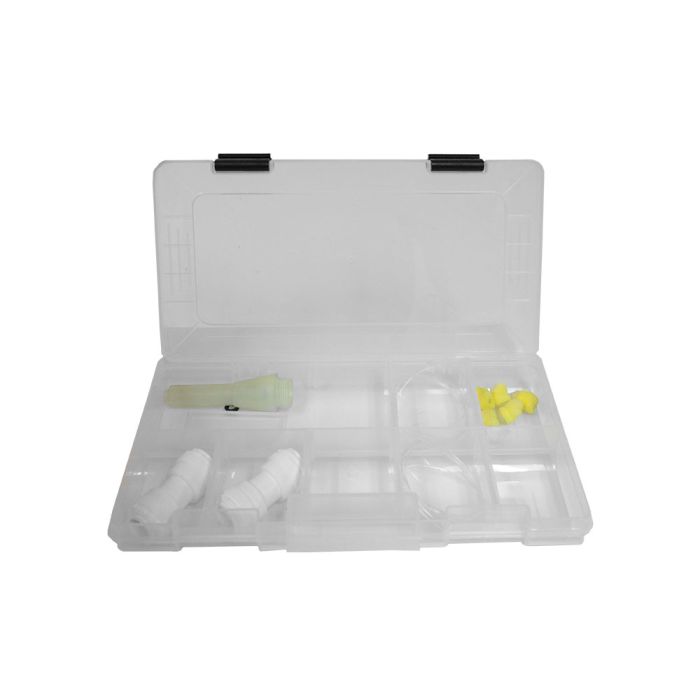

Package Contents

• Cable Jetter with nylon line
• Threaded Nozzle
• (2) Quick Connect fittings
• (6) Blowing Projectiles
• Pre-cut Nylon Pull String
• (6) Mini Pulling Eyes

Technical Specifications

Frequently Asked Questions

What is the maximum pressure recommended for the jetter?
It is recommended not to exceed 80 PSI during operation.

Can this tool be used to pull mule tape?
Yes, the kit is designed to assist in the installation of mule tape and nylon pull strings.

What size conduit is this system compatible with?
The system features a quick connect mechanism for attachment to 3/8-inch I.D. conduit.

Does the kit include a compressor?
The base kit does not include a compressor, though a portable unit is available as a separate accessory.

What is the primary function of the mechanical drive?
The mechanical drive is used to push the fiber cable physically through the conduit, which is particularly helpful when navigating past bends.

Downloads

• Product PDF
