Overview

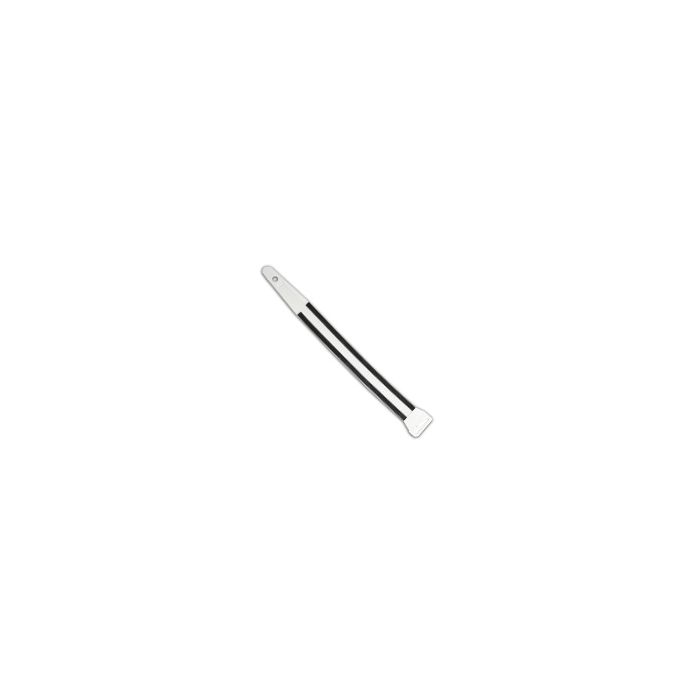

The Universal Cable Strap with foam padding is a specialized cable management solution designed to protect sensitive fiber optic cables from the performance degradation caused by traditional thin plastic zip ties. By utilizing a wider surface area and integrated foam padding, these straps prevent over-cinching, which is a common cause of macrobends and subsequent signal attenuation in fiber networks.
These adjustable and re-enterable straps are suitable for both fiber and copper cabling environments. The padded design provides a cushioning effect that helps maintain cable integrity, ensuring that sensitive data transmission is not compromised by pressure points or deformation. They are ideal for high-density environments, data centers, and telecommunications rooms where cable management is critical to network performance.
Key Features
-
Foam Padded Surface
Features 1/16" thick foam pads to distribute pressure evenly and prevent damage to cable jackets. -
Wide Strap Design
1" width provides a larger surface area to prevent stress concentrations on sensitive cables. -
Re-enterable and Adjustable
Designed for reuse and easy adjustment, accommodating changes in cabling density. -
Anti-Macrobending
Specifically designed to avoid over-cinching that causes harmful macrobends in fiber optic glass. -
Versatile Compatibility
Suitable for use with both fiber optic and copper cabling, protecting against crosstalk in copper and signal loss in fiber. -
Bundle Capacity
Supports a maximum bundle diameter of 2.5" for organized and manageable cable runs.
Applications
- Data center cable organization
- Telecommunications room infrastructure
- Fiber optic patch panels
- Enterprise cabling installations
- Copper and fiber cable bundling
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | FOTWWH50 |
| Strap Length | 12" |
| Strap Width | 1" |
| Head Width | 1.3" |
| Main Strap Thickness | 0.14" (including 1/16" foam) |
| Max Bundle Diameter | 2.5" |
| Package Quantity | 50-Pack |
| Color | White |
Frequently Asked Questions
Are these ties safe for fiber optic cable?
Yes, they are specifically designed with foam padding to prevent over-cinching, which prevents macrobends in fiber glass.
Can I use these for copper cabling as well?
Yes, they are suitable for copper cables, helping to prevent the deformation that can lead to crosstalk issues.
Can these ties be reused?
Yes, they are designed to be re-enterable and adjustable.
What is the maximum diameter this strap can bundle?
It supports a bundle diameter of up to 2.5 inches.
How thick is the padding?
The integrated foam pads are 1/16" thick.
