Overview

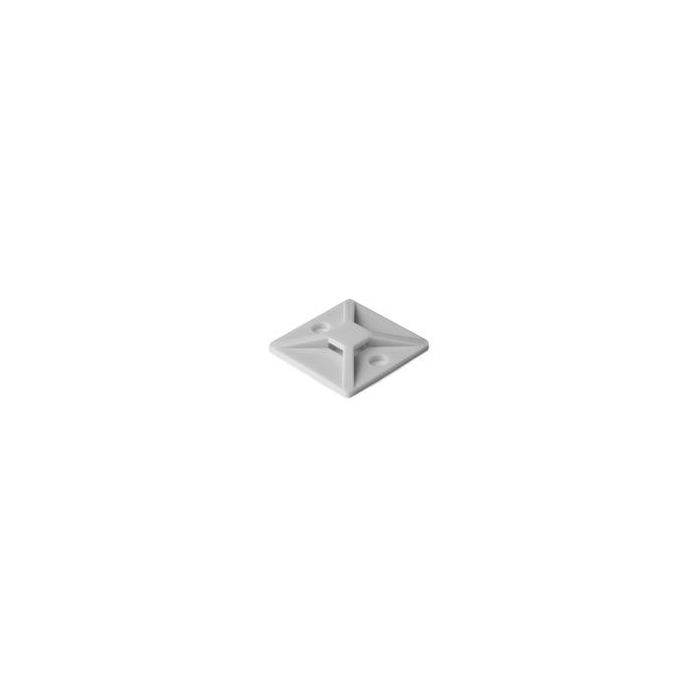

These cable tie mounting bases are designed to provide a secure, organized routing point for cable bundles in a wide variety of industrial and networking environments. Featuring a 4-way entry design, these mounts allow cable ties to be inserted from parallel or perpendicular directions, offering maximum flexibility during installation.
The bases are engineered for versatility, supporting both adhesive-backed installation for quick positioning on smooth surfaces and screw-down mounting for more permanent, high-vibration applications. They are specifically compatible with industry-standard T18 and T50 cable tie series.
Key Features
-
4-Way Cable Entry
Allows cable ties to be inserted from any of the four sides for easier, more efficient cable routing. -
Dual Mounting Options
Supports both adhesive-backed mounting for rapid deployment and screw-down mounting for secure, permanent fixing. -
Broad Compatibility
Designed to work seamlessly with T18 and T50 series cable ties. -
Durable Material
Constructed from high-quality Polyamide 6.6 (PA66) for long-term stability in various environments. -
Consistent Security
Provides a reliable anchor point to ensure wire bundles stay properly positioned and protected. -
Compact Footprint
1.12-inch square design ensures it fits effectively in tight rack or enclosure spaces.
Applications
- Data center cable management
- Network cabinet and enclosure organization
- Industrial equipment wiring
- General purpose cable bundling
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | HellermannTyton |
| Part Number | MB4A10H4 |
| Dimensions | 1.12" L x 1.12" W x 0.22" H |
| Max Cable Tie Width | 0.18" |
| Hole Diameter | 0.18" |
| Material | Polyamide 6.6 (PA66) |
| Color | White |
| Quantity per Package | 10 |
Frequently Asked Questions
Can these be used without screws?
Yes, they feature an adhesive backing for quick installation on clean, smooth surfaces.
Are these mounts suitable for heavier cable bundles?
They are rated for use with T18 and T50 cable ties, providing sufficient support for standard wire bundling applications.
What is the maximum cable tie width supported?
The base accommodates cable ties up to 0.18 inches in width.
Can the mount be installed in any direction?
Yes, the 4-way opening allows for cable tie insertion from any side.
What is the material composition?
The bases are manufactured from durable Polyamide 6.6.
