Overview

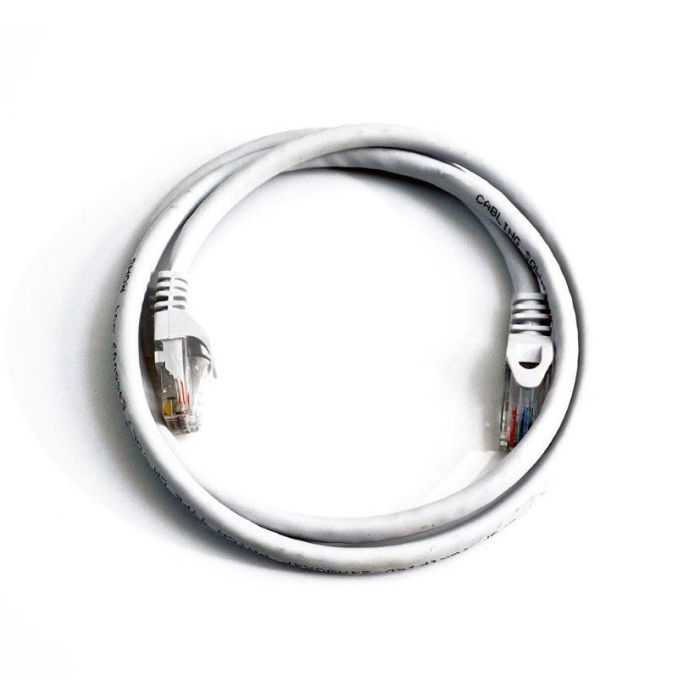

The Cat 5e Patch Cable is a high-performance networking solution designed for reliable data transmission in professional environments. This 10-foot assembly features 4-pair stranded, unshielded 24 AWG conductors, ensuring flexibility and durability for patch panel and workstation connections. Engineered for optimal signal integrity, it meets or exceeds industry Cat 5e performance standards.
Designed for easy installation and management, the cable includes snagless boots to prevent connector damage during routing. The non-plenum (CMR) rated jacket makes it suitable for standard building applications. It is factory-terminated with high-quality 8-position RJ45 plugs, supporting universal T568A/T568B wiring configurations for seamless integration into existing network infrastructures.
Key Features
-
Category 5e Rated
Meets or exceeds all TIA/EIA standards for Cat 5e performance, ensuring reliable data throughput. -
Snagless Boots
Integrated protective boots prevent the RJ45 latch from breaking during moves, adds, or changes. -
24 AWG Conductors
Uses 24 AWG stranded copper wire for balanced flexibility and signal transmission stability. -
4-Pair Unshielded
Standard 4-pair unshielded twisted pair design suitable for general office and data center networking. -
Universal Wiring
Supports both T568A and T568B wiring schemes for broad compatibility with networking equipment. -
RJ45 Termination
Factory-terminated with standard 8-position RJ45 plugs for immediate plug-and-play installation. -
CMR Rated
Non-plenum (CMR) riser-rated jacket allows for safe use in typical wall and floor building pathways.
Applications
- Data center cross-connects
- Workstation-to-wall-outlet patching
- Network switch and server connectivity
- Local Area Network (LAN) deployments
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Cat 5e Patch Cable |
| Connector Type | RJ45 (8-Position) |
| Conductor Gauge | 24 AWG |
| Configuration | 4-Pair Stranded Unshielded |
| Cable Length | 10 ft |
| Wiring Standard | Universal (T568A/T568B) |
| Jacket Rating | CMR (Non-Plenum) |
| Color | White |
Frequently Asked Questions
Is this cable plenum rated?
No, this cable is CMR (Non-Plenum) rated, suitable for standard riser applications.
Does this support both T568A and T568B wiring?
Yes, it is designed for universal compatibility with both T568A and T568B wiring configurations.
What does the snagless boot do?
The boot protects the RJ45 tab, preventing it from snagging on other cables and breaking during installation.
Is this a stranded or solid conductor cable?
This cable uses stranded conductors to provide the flexibility needed for patch cord applications.
What is the conductor gauge?
This cable uses 24 AWG copper conductors.
