Overview

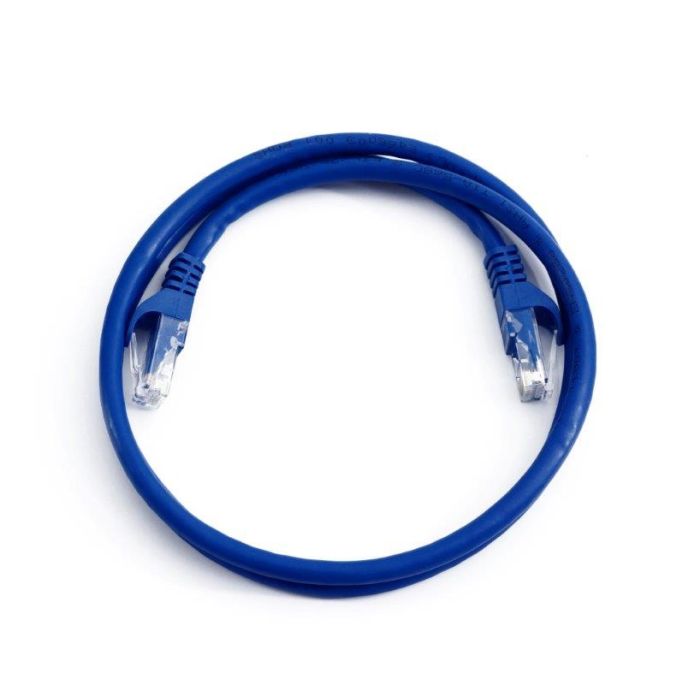

The Cat 5e patch cable is a high-performance network solution designed for reliable data transmission in professional environments. This 15ft cable is engineered for seamless integration into existing Ethernet infrastructures, ensuring robust connectivity for workstations, network switches, and peripheral hardware.
Constructed as a 4-pair stranded unshielded cable, this patch cord features 24 AWG conductors for balanced performance. It is finished with snagless boots that protect the connector tabs during installation and removal, making it ideal for high-density environments like server rooms and wiring closets where space is at a premium.
Key Features
-
4-Pair Stranded Construction
Features high-quality 24 AWG stranded conductors for improved flexibility and signal integrity during installation. -
Snagless Boot Design
Prevents the locking tab of the RJ45 connector from breaking during cable management, extending service life. -
Universal Wiring Standard
Supports T568A and T568B wiring schemes for broad compatibility with existing network equipment. -
Non-Plenum (CMR) Rated
Designed for general-purpose indoor use, meeting essential safety and fire resistance standards for vertical risers. -
Pre-Terminated RJ45
Factory-terminated with 8-position RJ45 plugs to ensure consistent, reliable connectivity right out of the package. -
Cat 5e Performance
Fully rated to meet or exceed Cat 5e performance standards for high-speed network applications.
Applications
- Local Area Network (LAN) connections
- Data center and server room rack-to-rack patching
- Workstation to wall-outlet connectivity
- General office networking
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Cat 5e Patch Cord |
| Length | 15ft |
| Color | Blue |
| Conductor Gauge | 24 AWG |
| Construction | 4-pair stranded unshielded |
| Connector | 8-position RJ45 |
| Wiring Standard | Universal (T568A/T568B) |
| Jacket Rating | Non-Plenum (CMR) |
Frequently Asked Questions
What is the primary difference between CMR and Plenum cable?
CMR (Riser) cable is designed for use in vertical shafts, while Plenum cable is intended for air-handling spaces. Always confirm your local building code requirements before installation.
Does this cable support Gigabit Ethernet?
Yes, this cable is designed to meet or exceed Cat 5e performance standards, which support data rates up to 1Gbps.
What does the snagless boot feature provide?
The snagless boot protects the RJ45 locking clip from catching on other cables or components, preventing damage to the connector tab.
Is this cable shielded?
No, this is an unshielded (UTP) patch cable.
Can this cable be used with T568B wiring?
Yes, it supports both T568A and T568B wiring standards.
