Overview

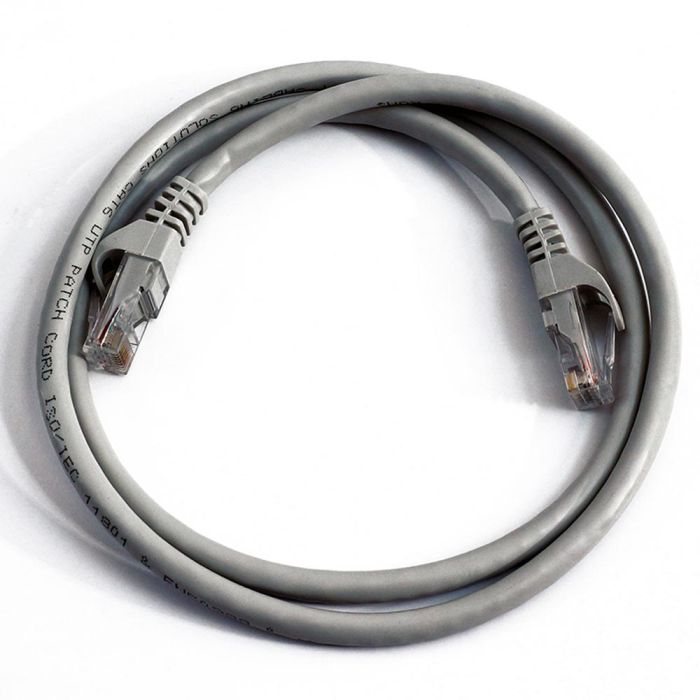

The Cat 5e Patch Cable is a high-quality, pre-terminated networking solution designed for reliable data transmission in professional environments. Engineered with 4-pair stranded copper conductors, this patch cord is intended for use in non-plenum (CMR) rated applications, making it suitable for standard cabling installations in office and commercial spaces.
Each cable is factory-terminated with high-performance 8-position RJ45 plugs, ensuring consistent connectivity for local area network (LAN) equipment. Featuring molded, snagless boots, the design provides extra strain relief and prevents the locking tab from catching on other cables during installation or maintenance, promoting long-term durability in high-density environments.
Key Features
-
4-Pair Stranded Construction
Uses 24 AWG stranded copper wire for optimal balance between flexibility and signal integrity. -
RJ45 Pre-Termination
Factory-installed 8-position plugs eliminate the need for field termination, saving time and reducing error. -
Non-Plenum (CMR) Rating
Designed for riser applications, meeting standard commercial fire safety requirements for vertical cable runs. -
Snagless Boot Design
Protects the RJ45 connector tab during installation to ensure a secure connection that lasts. -
Universal Wiring
Supports both T568A and T568B wiring configurations for broad compatibility with existing network standards. -
Cat 5e Performance
Meets or exceeds industry standards for Cat 5e data throughput and reliability.
Applications
- Local Area Networks (LANs)
- Workstation-to-wall-plate connectivity
- Patch panel cross-connects
- VoIP phone systems
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Cat 5e |
| Cable Length | 7 feet |
| Conductor Size | 24 AWG |
| Stranding | 4-pair stranded |
| Connector Type | 8 position RJ45 |
| Wiring Standard | T568A/T568B |
| Rating | Non-Plenum (CMR) |
| Boot Type | Molded, snagless |
| Color | Gray |
Frequently Asked Questions
What does CMR rating mean?
CMR stands for Communications Multipurpose Cable, Riser, indicating the cable is suitable for vertical installations between floors in standard commercial environments.
Is this cable shielded?
No, this is an unshielded (UTP) cable, which is the standard for most office and data center networking applications.
Does it support both T568A and T568B wiring?
Yes, the patch cord is compatible with both universal wiring standards, allowing it to be used in virtually any common network configuration.
What is the conductor gauge?
The cable uses 24 AWG (American Wire Gauge) copper conductors.
Are the connectors field-replaceable?
The connectors are factory-molded. In the event of a damaged connector, the entire patch cord should be replaced to maintain performance standards.
