Overview

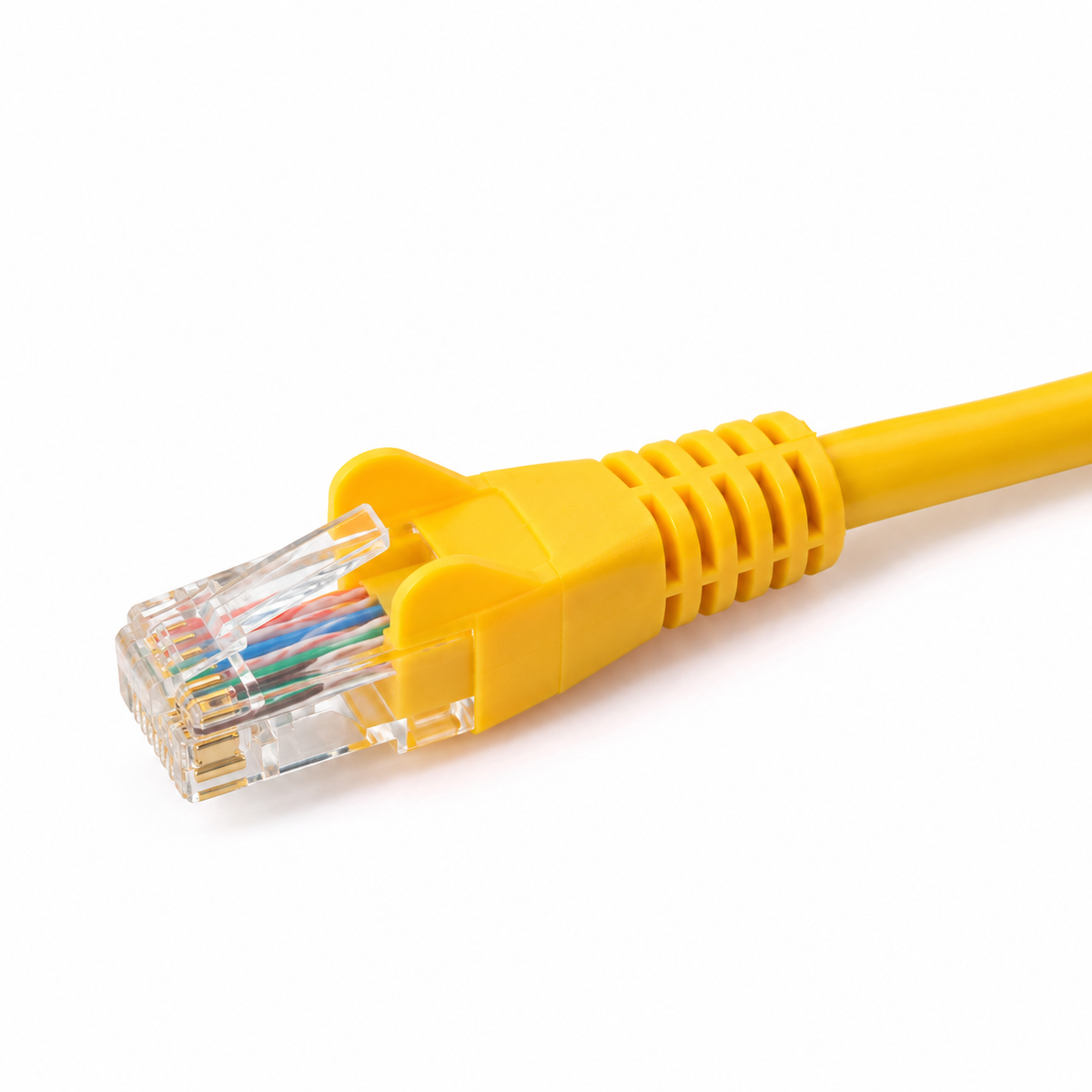

The Cat 5e Snagproof Patch Cord is a high-performance networking cable designed for reliable data transmission in professional environments. Engineered for versatility, this 5ft patch cord features 4-pair stranded unshielded 24 AWG conductors, making it suitable for standard network connectivity in data centers, offices, and home networks.
Equipped with snagless boots, the cable is designed to protect the locking tab from breaking during installation or when moved within dense cabling environments. It is CMR (Non-Plenum) rated, ensuring compliance for general-purpose indoor riser applications, and meets or exceeds industry standards for Category 5e performance.
Key Features
-
Snagless Boot Design
Features protective covers over the connector tabs to prevent snagging and breakage during cable management. -
High-Performance 24 AWG Conductors
Utilizes stranded copper conductors for optimal flexibility and consistent signal integrity. -
CMR (Non-Plenum) Rating
Constructed with materials suitable for general-purpose indoor installation requirements. -
Universal Wiring Standard
Compatible with both T568A and T568B wiring schemes for broad network integration. -
4-Pair Unshielded Configuration
Provides reliable transmission for standard Ethernet applications while maintaining flexibility. -
Factory Terminated
Pre-terminated with 8-position RJ45 plugs to ensure consistent quality and ease of deployment.
Applications
- Local Area Networks (LAN)
- Network switch and patch panel interconnects
- Workstation connectivity
- VoIP phone systems
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Category 5e Patch Cord |
| Length | 5ft |
| Color | Yellow |
| Conductor Gauge | 24 AWG |
| Construction | 4-pair Stranded, Unshielded |
| Connector | 8-Position RJ45 |
| Wiring Standard | Universal (T568A/T568B) |
| Rating | CMR (Non-Plenum) |
Frequently Asked Questions
What is the cable rating?
This cable is CMR (Non-Plenum) rated, making it suitable for general indoor riser applications.
Does this support both T568A and T568B wiring?
Yes, the patch cord is built to support universal wiring configurations.
What does the snagless boot do?
The boot covers the RJ45 locking tab, preventing it from snapping off when the cable is pulled through congested cable managers.
Is this a shielded cable?
No, this is an unshielded twisted pair (UTP) cable.
Is it stranded or solid copper?
This cable uses 24 AWG stranded conductors for increased flexibility.
