Overview

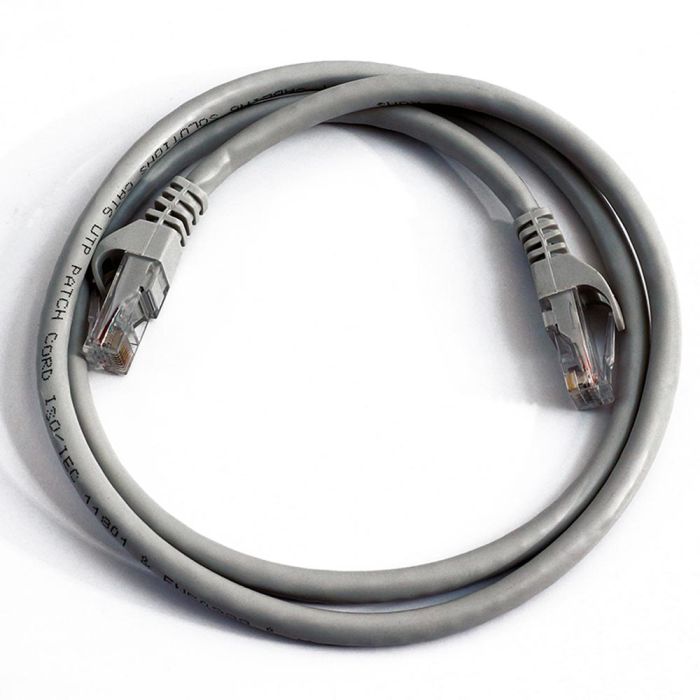

This Category 6 patch cable is designed to support high-speed data transmission in network environments. It is pre-terminated with RJ45 connectors and features integrated snagless boots to protect the connector latch and maintain proper bend radii during installation.
Constructed with 4-pair stranded unshielded 24 AWG conductors, this cable is rated for non-plenum (CMR) applications. It is suitable for use in standard office and commercial network cabling environments where Category 6 performance standards are required.
Key Features
-
RJ45 Termination
Pre-terminated with 8-position RJ45 plugs for immediate deployment. -
Snagless Boots
Integrated boots protect the connector clip and prevent cable snags. -
Stranded Conductors
Features 24 AWG 4-pair stranded wire for increased flexibility. -
Non-Plenum Rating
Certified as CMR rated for use in general-purpose riser spaces. -
Universal Wiring
Supports both T568A and T568B wiring configurations for broad compatibility. -
Performance Standards
Meets or exceeds Category 6 industry specifications.
Applications
- Ethernet Network Connections
- Workstation to Patch Panel links
- VoIP Phone Systems
- Data Center Cross-Connects
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Cat 6 |
| Length | 15ft |
| Color | Gray |
| Connector | RJ45 (8-position) |
| Conductor Gauge | 24 AWG |
| Conductor Type | Stranded |
| Shielding | Unshielded |
| Fire Rating | CMR (Non-Plenum) |
| Wiring Standard | T568A/T568B |
Frequently Asked Questions
What does CMR rating mean?
CMR stands for Communications Multipurpose Cable, Riser. This cable is designed to be installed in vertical shafts (risers) between floors in building network applications.
Can I use this for Gigabit Ethernet?
Yes, this Category 6 cable is designed to meet performance requirements for 10/100/1000Base-T Ethernet networks.
Are the boots removable?
The boots are typically molded onto the connector to ensure durability and protection, making them a permanent part of the assembly.
Does this support Power over Ethernet (PoE)?
Category 6 cabling generally supports various PoE standards; however, always consult the specific technical requirements of your network equipment.
What is the difference between T568A and T568B?
These are the two common wiring schemes for RJ45 connectors. This cable is designed to support both, ensuring compatibility with your existing network infrastructure.
