Overview

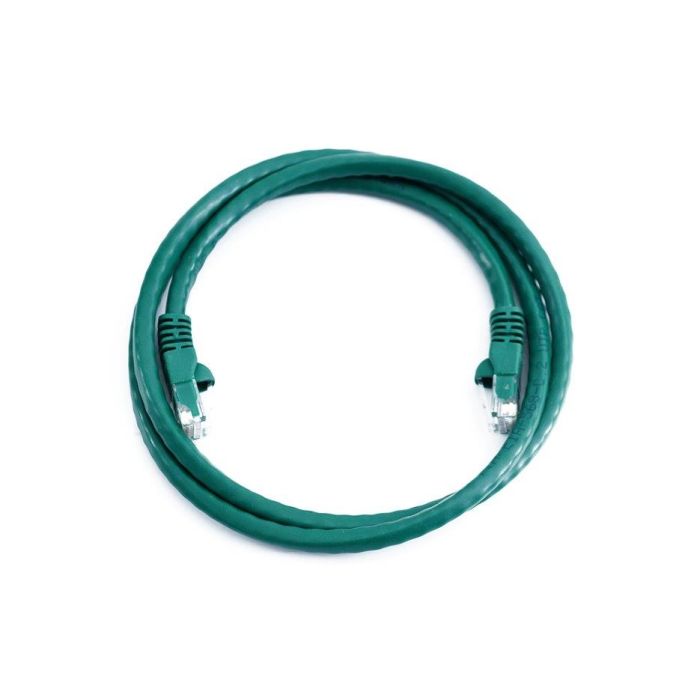

The Cat 6 Patch Cable is a high-performance network solution designed for reliable data transmission in professional environments. This 7-foot cable is engineered to meet or exceed Cat 6 performance standards, ensuring robust support for high-speed networking applications.
Each cable is pre-terminated with 8-position RJ45 plugs and features integrated snagless boots to protect the connector release tab during installation and maintenance. The cable is constructed using 4-pair stranded copper conductors with a 24 AWG gauge, providing flexibility and durability for patch panel and workstation connections. Rated for non-plenum (CMR) use, this cable is suitable for general-purpose indoor installation requirements.
Key Features
-
RJ45 Connectivity
Pre-terminated with industry-standard 8-position RJ45 plugs for immediate plug-and-play installation. -
Snagless Boot Design
Features integrated boots that prevent the connector tab from snagging on other cables or components. -
Cat 6 Compliance
Designed to meet or exceed current Cat 6 performance specifications for high-bandwidth data applications. -
Stranded Copper Conductors
Utilizes 24 AWG stranded wire, offering improved flexibility for tight spaces and frequent handling. -
Universal Wiring
Supports T568A and T568B wiring schemes for compatibility with various network infrastructures. -
CMR Rated
Non-plenum (CMR) rated jacket suitable for vertical installations within building walls.
Applications
- Data Center patch cabling
- Local Area Network (LAN) connections
- Workstation-to-wall-jack connectivity
- Network switch and server cross-connects
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Cat 6 Patch Cord |
| Connector Type | RJ45 (8-Position) |
| Conductor Gauge | 24 AWG |
| Conductor Type | Stranded, 4-pair |
| Shielding | Unshielded |
| Jacket Rating | Non-Plenum (CMR) |
| Wiring Standard | Universal (T568A/T568B) |
| Cable Length | 7 feet |
| Color | Green |
Frequently Asked Questions
Is this cable suitable for plenum spaces?
No, this cable is CMR (Riser) rated, which is intended for vertical runs between floors, not for use in environmental air-handling plenum spaces.
Does this cable support both T568A and T568B wiring?
Yes, it is designed for universal wiring compatibility.
Are the boots removable?
The boots are integrated for strain relief and protection; they are not intended to be removed.
Is this a shielded cable?
No, this is a 4-pair unshielded (UTP) patch cable.
What is the conductor size?
This cable uses 24 AWG stranded conductors.
