Overview

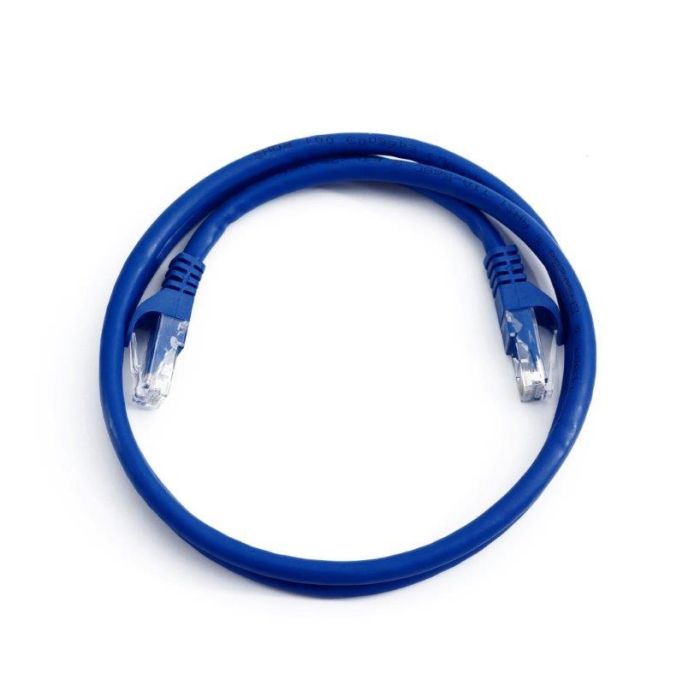

This Cat 6 patch cable is designed for high-speed network connectivity in data centers, server rooms, and enterprise office environments. It ensures reliable signal integrity for Gigabit Ethernet applications, providing a robust connection between networking equipment and patch panels.
Engineered for durability, this cable features a 4-pair stranded unshielded construction with a 24 AWG conductor, finished with molded snagless boots to prevent connector damage during installation. The cable is CMR (Non-Plenum) rated, making it suitable for standard vertical and horizontal building runs.
Key Features
-
8-Position RJ45 Plug
Pre-terminated with industry-standard connectors for immediate plug-and-play installation. -
Category 6 Performance
Meets or exceeds Cat 6 standards to support high-bandwidth network requirements. -
24 AWG Conductors
Utilizes stranded copper conductors for better flexibility and durability in tight spaces. -
Snagless Molded Boots
Protects the RJ45 locking tab from breaking during pulls and cable management. -
Universal Wiring
Compliant with T568A and T568B wiring schemes for broad compatibility. -
CMR Rated Jacket
Non-plenum rated sheath suitable for standard building installations.
Applications
- Gigabit Ethernet networking
- VoIP phone systems
- Data center patch cabinets
- Office local area networks (LAN)
Technical Specifications
| Specification | Value |
|---|---|
| Cable Category | Cat 6 |
| Conductor Gauge | 24 AWG |
| Conductor Type | Stranded |
| Cable Length | 1 ft |
| Color | Blue |
| Connector Type | RJ45 |
| Jacket Rating | CMR (Non-Plenum) |
| Wiring Standard | T568A / T568B |
Frequently Asked Questions
What does the CMR rating mean?
CMR stands for Communications Multipurpose Cable, Riser, which indicates the cable jacket is rated for use in vertical risers between floors.
Are these cables compatible with Cat 5e equipment?
Yes, Cat 6 cables are backward compatible with Cat 5e and Cat 5 systems.
Is this cable shielded?
No, this is a 4-pair stranded unshielded cable (UTP).
Does this cable support Power over Ethernet (PoE)?
Cat 6 cabling is generally capable of supporting standard PoE applications when installed correctly.
What is the conductor configuration?
The cable uses 4-pair stranded conductors configured in a standard RJ45 interface.
