Overview

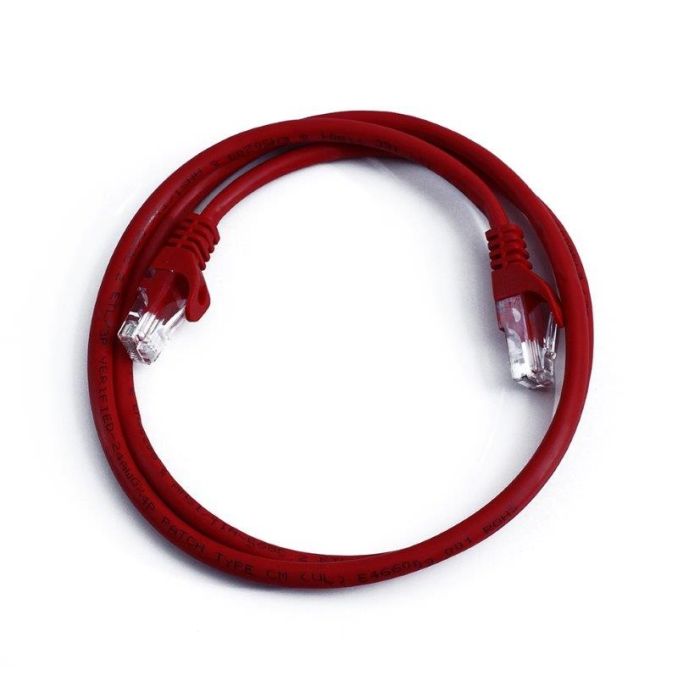

This Category 6 patch cord is a high-performance network cable designed for reliable data transmission in local area networks (LANs). It is engineered to meet or exceed Cat 6 industry standards, providing the necessary bandwidth and signal integrity for modern networking environments, including data centers, office workstations, and VoIP installations.
Constructed with a 4-pair stranded copper design and 24 AWG conductors, this cable offers flexibility while maintaining the structural integrity required for high-speed connections. The assembly is jacketed with a non-plenum (CMR) rated material, making it suitable for standard building riser pathways. The snagless boot design protects the RJ45 locking tab, ensuring a secure connection and facilitating easy installation in high-density patching areas.
Key Features
-
Cat 6 Compliance
Meets or exceeds industry performance standards for Category 6 networking, ensuring dependable data speeds. -
Snagless Boot Design
Prevents the RJ45 locking clip from breaking off during installation or removal, maintaining connection security. -
Universal Wiring
Features T568A/T568B universal wiring configurations for broad compatibility with existing network hardware. -
CMR Rated Jacket
Non-plenum (CMR) fire safety rating allows for use in standard riser building installations. -
4-Pair Stranded Construction
Uses 24 AWG conductors to provide a balance of durability and flexibility for efficient cable management. -
Pre-Terminated
Factory-terminated with 8-position RJ45 plugs for immediate deployment and consistent signal quality.
Applications
- Gigabit Ethernet networks
- VoIP telephone systems
- Patch panel to switch connections
- Workstation to wall outlet connections
- IP camera and security systems
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | CT608103RD |
| Cable Length | 3ft |
| Cable Type | Category 6 (Cat 6) |
| Conductor Gauge | 24 AWG |
| Conductor Type | 4-Pair Stranded |
| Connector Type | 8 Position RJ45 |
| Rating | Non-Plenum (CMR) |
| Wiring Standard | T568A/T568B (Universal) |
Frequently Asked Questions
What does CMR rating mean?
CMR stands for Communications Multipurpose Cable, Riser. It indicates the cable is approved for use in vertical shafts or riser pathways within a building where fire resistance is required.
Is this cable shielded?
No, this is an unshielded twisted pair (UTP) cable.
Can I use this for Gigabit speeds?
Yes, this cable is designed to meet Cat 6 specifications, which support Gigabit Ethernet applications.
What is the purpose of the snagless boot?
The snagless boot is molded over the RJ45 connector to prevent the plastic locking tab from catching on other cables or equipment during installation, which helps prevent breakage.
Are these cables compatible with existing Cat 5e hardware?
Yes, Cat 6 cabling is backwards compatible with Cat 5e and Cat 5 components.
