Overview

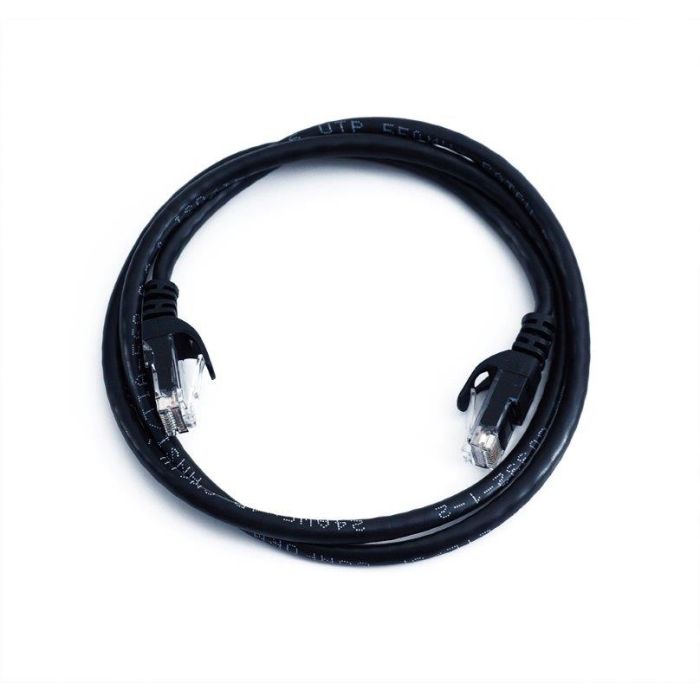

The Cat 6 Snagproof Patch Cord provides high-performance connectivity for data networking applications. Designed to meet or exceed current Category 6 industry standards, this patch cord ensures data integrity for high-speed network environments.
Constructed as a 4-pair stranded unshielded cable with 24 AWG conductors, the assembly is engineered for flexibility and durability in indoor environments. The cord features pre-terminated 8-position RJ45 plugs equipped with snagless boots, which protect the connector tabs from breakage during installation and routine maintenance. This cable is Non-Plenum (CMR) rated, making it suitable for standard riser applications.
Key Features
-
Snagless Boot Design
Features a molded protective boot that prevents the RJ45 tab from snagging on other cables or hardware during installation. -
8-Position RJ45 Plugs
Pre-terminated connectors ensure consistent electrical contact and compatibility with standard Ethernet ports. -
Category 6 Compliant
Meets or exceeds industry performance standards for data transmission and network reliability. -
Universal Wiring
Supports T568A and T568B wiring configurations for versatile deployment in various network infrastructures. -
4-Pair Stranded Construction
Utilizes 24 AWG stranded conductors for enhanced flexibility and cable management in patch panels and workstations. -
Non-Plenum (CMR) Rating
Verified for use in riser environments, ensuring compliance with standard building safety requirements.
Applications
- Local Area Networks (LAN)
- Data center cross-connects
- Workstation equipment connectivity
- Network switch and patch panel patching
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Cat 6 UTP |
| Length | 7ft |
| Color | Black |
| Conductor Gauge | 24 AWG |
| Conductor Type | Stranded |
| Connector Type | 8 Position RJ45 |
| Flame Rating | CMR (Non-Plenum) |
| Wiring Standard | Universal (T568A/T568B) |
Frequently Asked Questions
What does the snagless boot feature do?
The snagless boot covers the release tab of the RJ45 connector, preventing it from snagging on other cables or equipment during moves and changes.
Can this be used in plenum spaces?
No, this cable is CMR (riser) rated. It should not be used in HVAC plenum spaces.
Is this cable shielded?
No, this is an unshielded twisted pair (UTP) cable.
Are these cables compatible with both T568A and T568B?
Yes, the cables are wired to support universal wiring standards (T568A/T568B).
What is the conductor size?
This cable uses 24 AWG stranded copper conductors.
