Overview

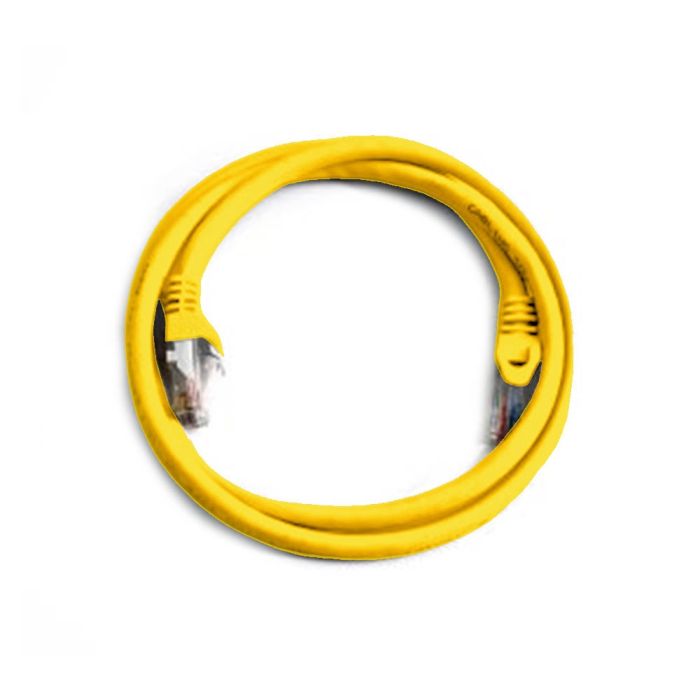

This Category 6 snagproof patch cord is designed for high-performance network connectivity in office, data center, and enterprise environments. It serves as a reliable link for connecting workstations, network switches, routers, and other Ethernet-enabled equipment.
Constructed with 4-pair stranded copper conductors, this cable features a flexible design suitable for patch panels and high-density environments. The snagless boot design protects the RJ45 connector tab, ensuring ease of installation and preventing damage during frequent moves or configuration changes.
Key Features
-
RJ45 Connector
Equipped with 8-position plugs for universal compatibility with standard Ethernet ports. -
Snagless Boot
Prevents the locking tab from catching on other cables, facilitating easier maintenance and routing. -
Category 6 Rated
Meets or exceeds industry standards for Cat 6 data transmission performance. -
Stranded Conductors
Uses 24 AWG stranded copper for enhanced flexibility and durability during installation. -
Universal Wiring
Supports T568A/T568B wiring configurations for versatile network integration. -
Non-Plenum Rating
CMR jacket rating ensures the cable is suitable for vertical riser pathways in general-purpose building applications.
Applications
- Local Area Network (LAN) connections
- Data center workstation cabling
- Network equipment cross-connects
- VoIP and PoE (Power over Ethernet) systems
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | Cat 6 |
| Length | 7ft |
| Connector Type | 8-Position RJ45 |
| Conductor Type | 4-Pair Stranded |
| Gauge | 24 AWG |
| Jacket Rating | CMR (Non-Plenum) |
| Wiring Standard | T568A/T568B |
| Shielding | Unshielded |
| Color | Yellow |
Frequently Asked Questions
What does the snagproof boot design do?
The snagproof boot covers the locking tab on the RJ45 connector, preventing it from getting caught on other cables during cable management or removal.
Is this cable plenum rated?
No, this cable is CMR rated (Non-Plenum), which is intended for general building applications such as in walls or riser paths, not for plenum air spaces.
Does this cable support PoE?
Yes, this 24 AWG Category 6 patch cord is suitable for standard Power over Ethernet applications.
What is the difference between T568A and T568B wiring?
Both are industry standards for wiring modular jacks and plugs. The cable is designed to support both, ensuring compatibility with your existing network infrastructure.
Can this be used for Gigabit Ethernet?
Yes, Category 6 cabling is designed to support Gigabit Ethernet performance.
