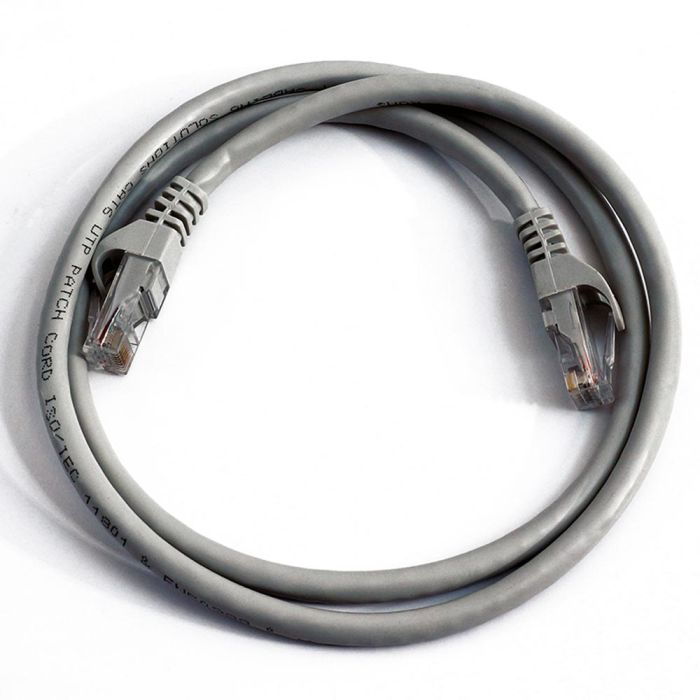

Cat6 Snagproof Patch Cord 20ft Gray

Overview

The Cat6 Snagproof Patch Cord is a high-performance network cable designed for reliable data transmission in professional and residential networking environments. This cable is specifically engineered to meet or exceed Category 6 performance standards, ensuring robust connectivity for demanding network applications.

Constructed with 4-pair stranded unshielded 24 AWG copper conductors, this patch cord provides the flexibility required for easy routing while maintaining signal integrity. The cable is jacketed with a Non-Plenum (CMR) rated material, making it suitable for general-purpose vertical wiring in buildings. The inclusion of snagproof boots prevents the connector locking tab from breaking during installation and removal, significantly extending the service life of the patch cord.

Key Features

• Snagproof Boot Design
  Features protective boots over the RJ45 plugs to prevent the locking tab from catching on other cables during installation or removal.
• Cat 6 Performance
  Engineered to meet or exceed Category 6 transmission standards for high-speed network reliability.
• Universal Wiring
  Compatible with both T568A and T568B wiring configurations for versatile installation.
• CMR Rated Jacket
  Non-Plenum (CMR) jacket rating provides safety compliance for vertical tray and general riser applications.
• Stranded 24 AWG Conductors
  Uses 4-pair stranded copper construction for increased flexibility and durability in patch panel environments.
• Pre-Terminated
  Factory-terminated with high-quality 8-position RJ45 plugs for immediate, consistent performance out of the box.

Applications

• Local Area Networks (LAN)
• Data Center Patching
• VoIP and IP Camera Connectivity
• Workstation and Server Connections

Technical Specifications

Frequently Asked Questions

What does the snagproof boot do?
The snagproof boot covers the connector's locking tab, preventing it from catching or snapping off when pulling cables through cable management or crowded patch panels.

Is this cable plenum rated?
No, this cable is CMR (Riser) rated, which is appropriate for general vertical wiring inside walls or conduits, but not for use in plenum air spaces.

Can I use this for T568A or T568B installations?
Yes, the cable is wired for universal compatibility with both T568A and T568B standards.

What is the conductor gauge?
The cable uses 24 AWG stranded copper conductors.

Does the cable come factory terminated?
Yes, each end is pre-terminated with an 8-position RJ45 plug.
