Ceiling Mount Zone Enclosure, 2RU

Overview

The Ceiling Mount Zone Enclosure, 2RU, is a professional-grade distribution solution designed for seamless integration into 2x2 drop ceiling environments. Engineered to facilitate reliable cross-connects, this enclosure allows for the efficient patching and distribution of infrastructure cabling between network zones.

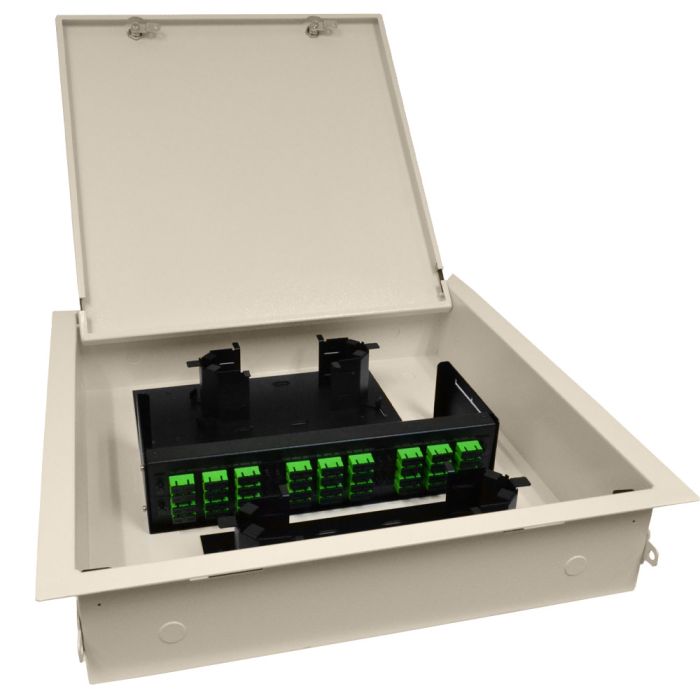

This unit features a modular design that supports high-density configurations, accommodating up to 144 fibers (LC). The enclosure includes a detachable master panel compatible with industry-standard LGX adapter plates and a back panel with 96 mounting holes, providing technicians with the flexibility to customize internal layouts to meet specific project requirements.

Key Features

• Ceiling Mount Design
  Optimized for installation in 2x2 drop ceilings to save valuable floor or wall space.
• High-Density Capacity
  Supports up to 144 fibers (LC) to maximize network infrastructure density.
• LGX Compatibility
  Accommodates six industry-standard LGX adapter plates for versatile connectivity options.
• Detachable Master Panel
  Simplifies installation and maintenance by allowing complete access to the internal layout.
• Flexible Back Panel
  Features 96 mounting holes in a 16" x 6" configuration for custom cable management.

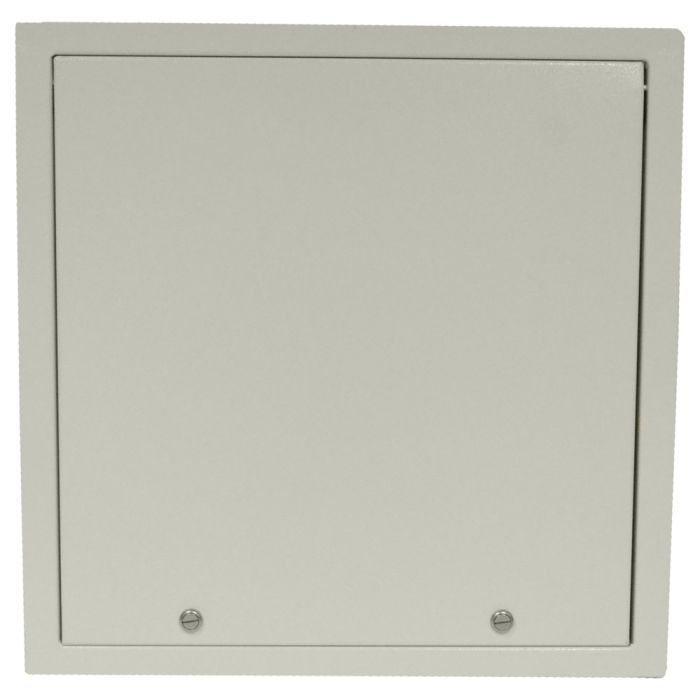

• Secure Access
  Equipped with a lockable door to protect critical fiber connections from unauthorized access.
• Adjustable Cable Management
  Includes adjustable and removable managers for orderly cable routing.

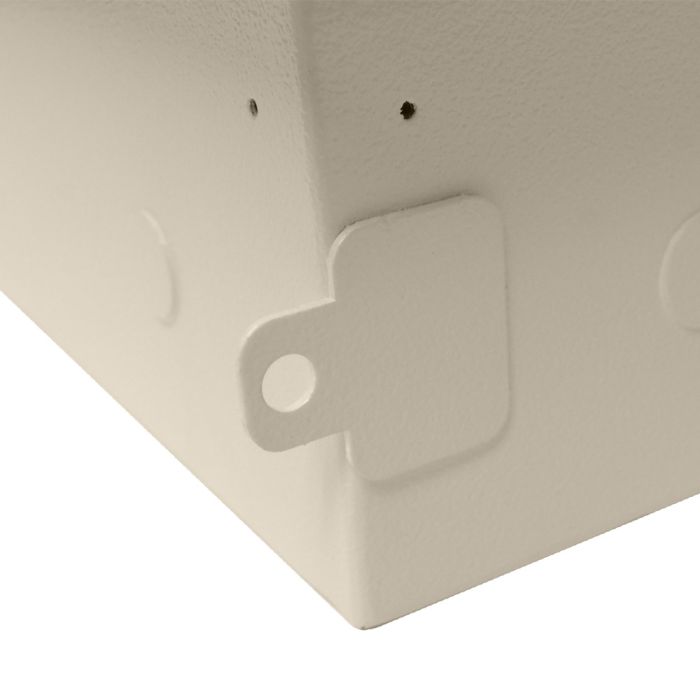

• Built-in Knockouts
  Features two 3/4" knockouts on each side to facilitate easier cable entry and exit.

Applications

• Cross-connect patching
• Zone cabling distribution
• Data center infrastructure management
• Enterprise network expansion

Package Contents

• 2RU Ceiling Mount Zone Enclosure
• Steel threaded tie wire
• Mounting anchors

Technical Specifications

Frequently Asked Questions

Is this enclosure compatible with standard 2x2 ceiling grids?
Yes, it is specifically designed to fit within 2x2 drop ceiling systems.

How many LGX adapter plates does it support?
The master panel is capable of accommodating up to 6 LGX adapter plates.

What is the maximum fiber count?
The enclosure supports up to 144 fibers when using LC-style connectivity.

Are mounting materials included?
Yes, the unit is supplied with steel threaded tie wire and anchors.

Can the cable management features be removed?
Yes, the cable managers are designed to be adjustable or fully removable for specific layout needs.

Downloads

• Product PDF
