Overview
The Cheetah Splice-On Connector (SOC) is a factory-terminated, pre-cleaved pigtail designed for rapid installation in fiber optic networks. By utilizing a fusion splicing process, these connectors provide a high-performance alternative to mechanical connectors, ensuring reliable signal integrity and low return loss for critical network connections.
These connectors are designed for 900μm fiber applications and include a 27mm splice protection sleeve. The integrated strain relief boot and splice protection sleeve eliminate the need for traditional splice trays or excess cabinet space, making them ideal for high-density environments where space is at a premium.
Key Features
-
Factory Terminated
Pre-polished pigtail design ensures consistent optical performance and reduces field termination time. -
Pre-Cleaved Fiber
Fiber is factory-cleaved to minimize preparation steps for the technician during field installation. -
Integrated Protection
Includes a 27mm splice protection sleeve and strain relief boot to safeguard the fusion splice. -
Space-Saving Design
Eliminates the requirement for separate splice trays or additional cabinet space for housing splices. -
Broad Compatibility
Compatible with most industry-leading fusion splicers through the use of precision machined fiber holders. -
High-Quality Material
Features a zirconia ferrule for durable and precise physical contact mating.
Applications
- Fiber optic network installations
- High-density data center cabling
- FTTX deployments
- Enterprise premise networks
Package Contents

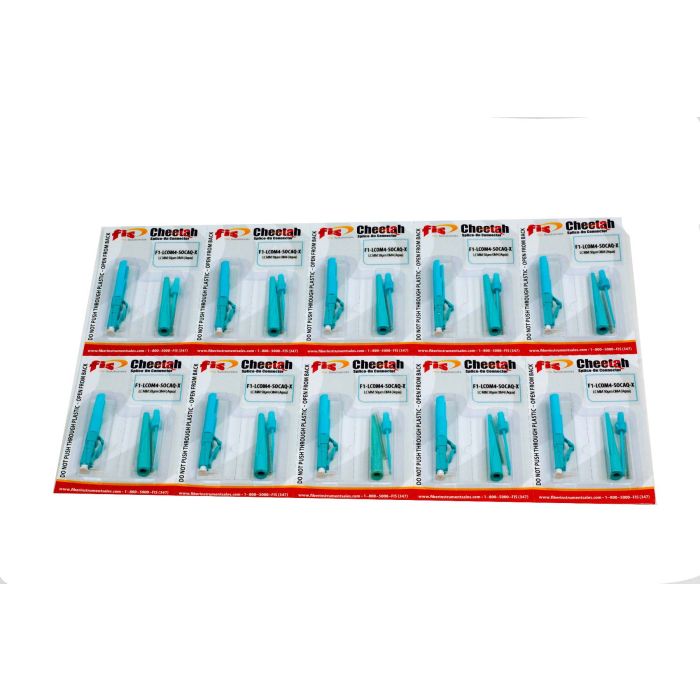

- 10 x LC Multimode 50um OM4 900um Cheetah Splice-On Connectors
- 10 x 27mm Splice Protection Sleeves
- 10 x Connector Strain Relief Boots
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | LC |
| Fiber Type | Multimode 50um OM4 |
| Fiber Size | 900μm |
| Ferrule Material | Zirconia |
| Splice Protection | 27mm Sleeve |
| Return Loss (UPC) | -55dBm |
| Quantity | 10 Pack |
Frequently Asked Questions
What equipment is required to install these connectors?
You must use a fusion splicer that supports removable fiber holders. Precision holders are required to align the connector correctly during the splicing process.
Are these connectors pre-polished?
Yes, they are factory-terminated and pre-polished to ensure high-quality optical performance upon installation.
Does this connector require a splice tray?
No, the inclusion of a custom strain relief boot and integrated splice sleeve removes the need for splice trays or chips.
Can I use these with any fusion splicer?
They are compatible with most industry-leading fusion splicers, including models from , AFL, Sumitomo, and OFS, provided you have the appropriate fiber holder.
What is the primary benefit of the Cheetah SOC?
The primary benefit is the reduction in field preparation time and space, as it combines the speed of a pre-terminated pigtail with the performance of a fusion-spliced connection.
