Overview

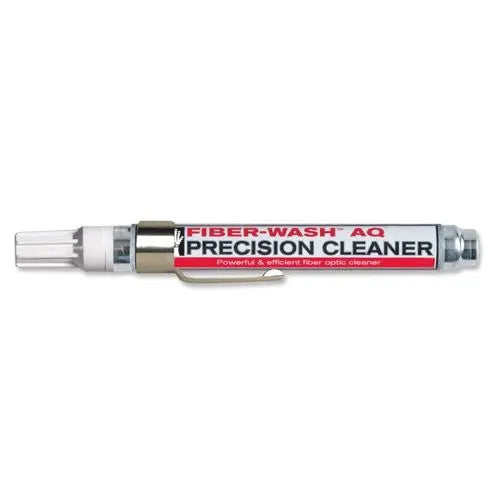

The Chemtronics FW2190 Fiber-Wash AQ Fiber Optic Cleaning Pen is a high-performance cleaning solution designed for the rigorous demands of fiber optic maintenance. This tool is engineered to effectively remove common contaminants such as dust, oils, greases, and handling soils from critical fiber end-faces and components, ensuring optimal signal transmission.
Formulated as an aqueous cleaning agent, this pen features a nonflammable and nonhazardous composition, making it suitable for both field and data center environments. Its precise dispensing mechanism allows for controlled application, minimizing waste while ensuring thorough cleaning of UPC and APC end-faces, including 2.5mm SC, 1.25mm LC, and MT connectors.
Key Features
-
Aqueous Formulation
Uses a safe, nonflammable, and nonhazardous cleaning fluid suitable for varied work environments. -
Precise Dispensing
Features a pen-style delivery system that provides controlled application to target specific areas without overspray. -
Universal Connector Compatibility
Designed to clean both UPC and APC end-faces on 1.25mm and 2.5mm connectors, including LC and SC types. -
Broad Contaminant Removal
Effectively lifts dust, oil, grease, and handling soils to ensure clean optical contact points. -
Military Grade Application
Suitable for use on a wide array of military end-face connections where reliability is mandatory. -
Integrated System Support
Optimized for use with specialized cleaning systems to facilitate the Combination Cleaning process (CCp).
Applications
- Fiber optic connectors and end-faces
- Transmitters, amplifiers, and transceivers
- Fiber jumpers and patch cords
- Data center network infrastructure
- Military fiber optic systems
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Chemtronics |
| Model | FW2190 |
| Cleaning Agent | Aqueous (Isopropyl Alcohol and 1-methoxy-2-propanol) |
| Connector Compatibility | 1.25mm LC, 2.5mm SC, MT |
| Fiber Finish | UPC and APC |
| Hazards | Nonflammable, Nonhazardous |
Frequently Asked Questions
What types of connectors can this pen clean?
The pen is compatible with 1.25mm LC connectors, 2.5mm SC connectors, and MT connectors, covering both UPC and APC finishes.
Is the cleaning solution flammable?
No, the Fiber-Wash AQ formulation is nonflammable and nonhazardous, making it safe for transport and use in restricted areas.
What contaminants does this pen remove?
It is formulated to remove dust, handling soils, oils, and greases from fiber end-faces and optical components.
Can I use this for military fiber applications?
Yes, it is designed for cleaning a wide range of military end-face connections.
What is the Combination Cleaning process?
The CCp (Combination Cleaning process) refers to using the pen in conjunction with systems like the SqE or p-QbE to achieve superior cleaning results for fiber end-faces.
