Overview

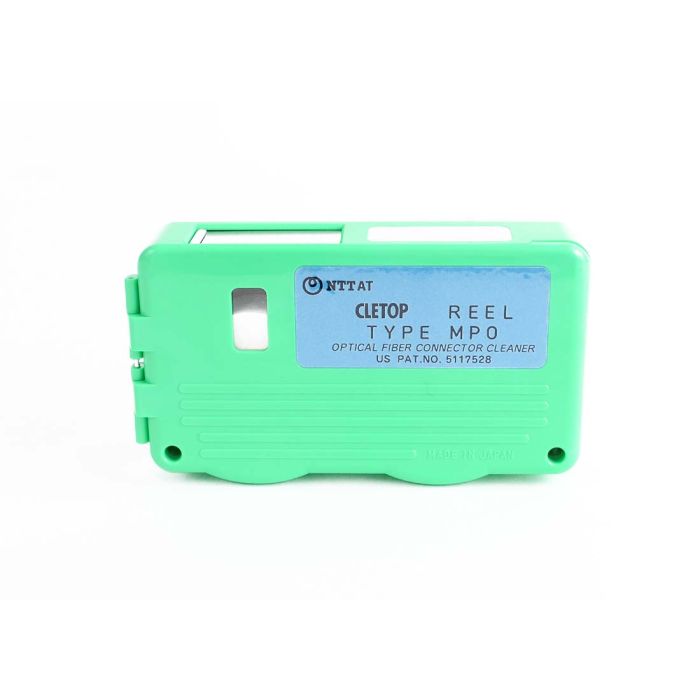

The Cletop Connector Cleaner is a field-proven, cassette-style cleaning solution specifically designed for MTP and MPO male connectors that feature guide pins. Effective contamination removal is critical for maintaining optical signal integrity in high-density data center environments and fiber optic networks.
The device utilizes a high-performance, lint-free white cleaning tape to gently remove dust, oils, and other contaminants from the connector end-face. This cassette is designed for reliable, repetitive operation, providing a consistent cleaning surface for every use to minimize the risk of scratching or damaging sensitive connector surfaces.
Key Features
-
Designed for MTP/MPO Male Connectors
Specifically engineered to clean the complex end-face of connectors featuring guide pins. -
High-Density Cleaning Tape
Uses high-quality, lint-free white tape to ensure effective particle and oil removal. -
400 Cleaning Cycles
Provides up to 400 cleanings per replaceable reel, offering high efficiency for heavy users. -
Replaceable Cleaning Reel
Compatible with refill cartridge F1-6277 to reduce long-term operational costs and waste. -
Compact Cassette Design
Portable and lightweight format ideal for use in data centers and field service kits. -
Dry Cleaning Process
Requires no solvents or chemicals, eliminating the need for drying time and reducing safety concerns.
Applications
- MTP/MPO connector end-face cleaning
- Data center fiber patch panel maintenance
- High-density fiber optic network deployment
- Field testing and installation services
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F16270MT |
| Compatibility | MTP/MPO Male (with Pins) |
| Cleaning Tape Type | White Tape |
| Tape Length | 14 Meters |
| Capacity | 400 Cleans per Reel |
| Compatible Refill | F1-6277 |
Frequently Asked Questions
Can this cleaner be used on female MTP/MPO connectors?
This specific model is designed for male connectors with pins. Please refer to the appropriate cleaner model for female connectors.
Is the cleaning tape replaceable?
Yes, the cleaning reel is replaceable using the F1-6277 refill cartridge.
How many cleans does one cassette provide?
The cassette provides approximately 400 cleaning operations per reel.
Do I need to use alcohol with this cleaner?
No, the Cletop system is a dry cleaning method and does not require the use of solvents.
Is this suitable for high-density patch panels?
Yes, its compact form factor makes it ideal for use in high-density rack environments.
