Overview

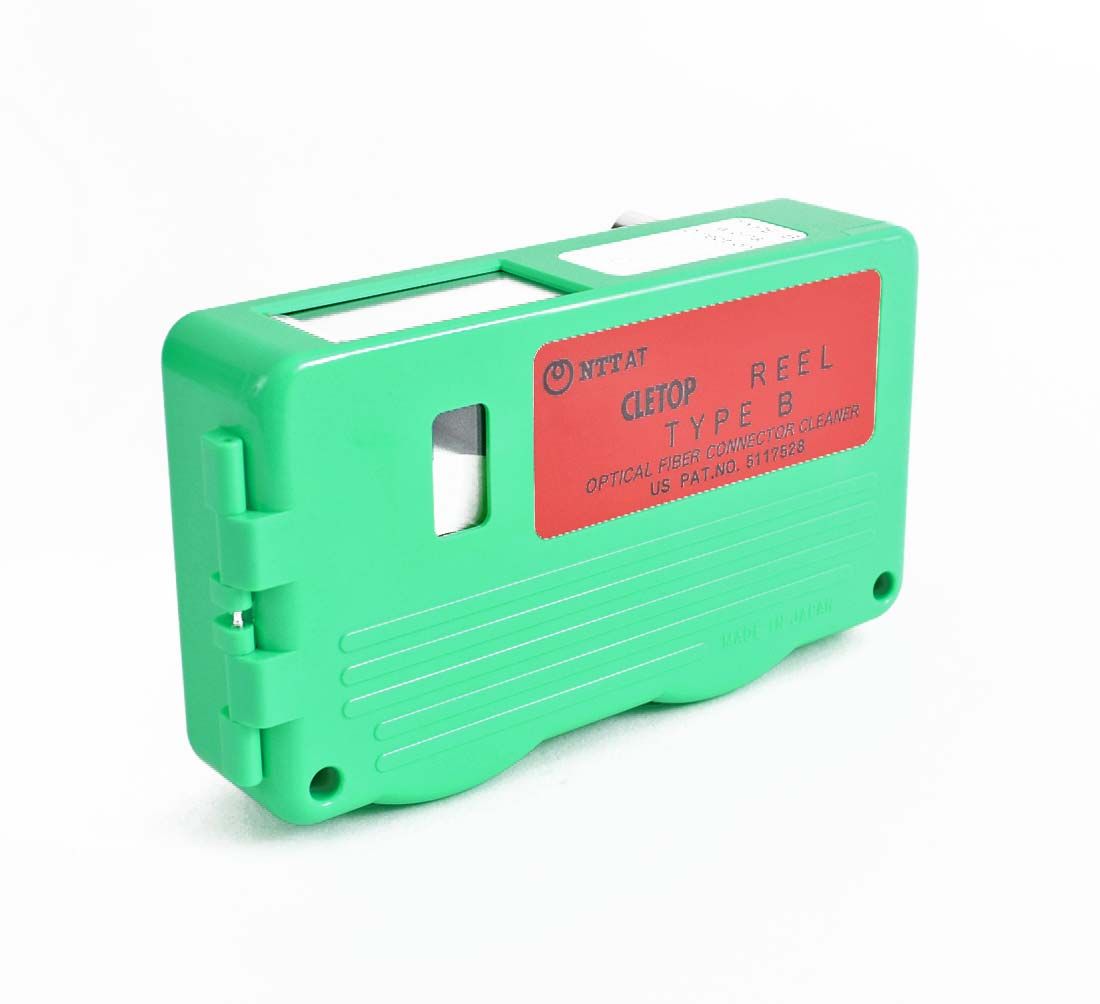

The Cletop connector cleaner is a rugged, handheld tool specifically engineered for the maintenance of fiber optic connector end faces. Designed for efficiency in both laboratory and field environments, this tool provides a safe and effective alternative to liquid cleaners, eliminating the need for toxic or flammable alcohol solvents.
Featuring a simple push-button shutter operation, the Cletop cleaner allows for rapid, consistent, and reliable cleaning results. The device utilizes replaceable anti-static cleaning tape reels, which help minimize dust reattachment to the fiber end face during the cleaning process.
Key Features
-
Compact and Lightweight Design
Ensures easy portability for both field and lab technicians. -
Push-Button Shutter Operation
Provides quick, easy, and repeatable cleaning cycles. -
Anti-Static Properties
Minimizes the potential for dust to reattach to the connector after cleaning. -
Alcohol-Free Cleaning
Eliminates the safety risks associated with flammable or toxic liquid solvents. -
Replaceable Cleaning Tapes
Offers a cost-effective solution for long-term maintenance. -
High Capacity
Each tape reel provides over 400 cleanings. -
Connector Compatibility
Specifically designed for female MTP/MPO and MT-RJ connectors (without pins).
Applications
- Data Center network maintenance
- Fiber optic laboratory environments
- Field service and installation of multi-fiber networks
- Routine cleaning of MTP/MPO patch cords
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F16210MF |
| Connector Compatibility | Female MTP/MPO, MT-RJ (No Pins) |
| Cleaning Capacity | 400+ swipes per tape |
| Cleaning Mechanism | White tape (dry cleaning) |
| Anti-Static | Yes |
Frequently Asked Questions
Is this cleaner compatible with pinned MTP connectors?
No, this model is specifically designed for female (no pins) MTP/MPO and MT-RJ connectors.
Does this tool require alcohol for cleaning?
No, Cletop cleaners utilize a dry cleaning method that does not require alcohol or solvents.
How many cleans can I get from one tape?
Each replacement tape provides over 400 cleaning swipes.
Are the tapes replaceable?
Yes, the cleaning tape reels are replaceable to maintain cost-effectiveness.
What is the advantage of the anti-static properties?
The anti-static design helps prevent dust from being attracted back to the connector end face after it has been cleaned.
