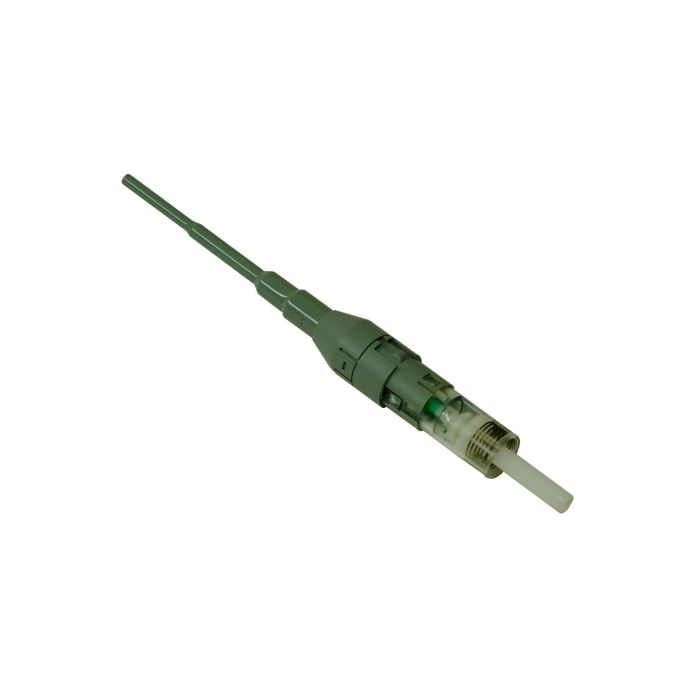

Connector Cleaner Bulkhead Ferrule Refill for 1.25mm LC & MU Connectors (750+ cleans)

Overview

This bulkhead ferrule refill cartridge is designed for use with the F16718 fiber optic cleaner. Engineered for 1.25mm LC and MU fiber optic connectors, this tool provides a reliable and efficient method for maintaining pristine end-face conditions in both outside plant and premise network environments.

The refill system promotes cost-efficiency by allowing users to replace the cleaning tape, supporting over 750 cleans per cartridge. The device utilizes a precision mechanism that scrubs 40mm of cleaning ribbon over the connector end-face, effectively removing dust, particulates, and oil contamination with consistent, delicate pressure to minimize the risk of end-face damage.

Key Features

• High Capacity Cleaning
  Each refill provides over 750 cleaning cycles, ensuring long-term utility for high-volume maintenance.
• Compatible with 1.25mm Ferrules
  Specifically engineered for precision cleaning of LC and MU connector types.
• Effective Contaminant Removal
  Advanced cleaning ribbon design lifts and removes dust, particulate matter, and oily residues.
• One-Click Operation
  Fast, single-action cleaning mechanism simplifies maintenance both in and out of adapters.
• Precision Ribbon Travel
  Scrubbing action covers 40mm of cleaning surface per cycle for thorough end-face coverage.
• Controlled Pressure
  Super-smooth activation prevents excessive force, reducing the risk of scratching sensitive fiber surfaces.
• Sustainable Maintenance
  Refillable design lowers the total cost of ownership compared to disposable cleaning tools.

Applications

• LC and MU connector end-face maintenance
• Outside plant fiber network installation
• Premise cabling system testing
• Data center fiber infrastructure upkeep
• Adapter-based and exposed connector cleaning

Frequently Asked Questions

What is this refill compatible with?
This is a replacement refill cartridge for the F16718 bulkhead ferrule cleaner, specifically sized for 1.25mm LC and MU connectors.

How many cleans does each refill provide?
Each cartridge provides more than 750 cleaning cycles.

Can I use this on heavily soiled connectors?
Yes, for heavily soiled connectors, it is recommended to use this cleaner in conjunction with a specialized fiber optic splice and connector cleaning fluid.

Is this safe for the connector end-face?
The tool uses a super-smooth activation with controlled, delicate pressure to clean the end-face without causing damage.

Does this remove oil?
Yes, the cleaning ribbon is designed to effectively remove dust, particulates, and oil contamination from the fiber end-face.
